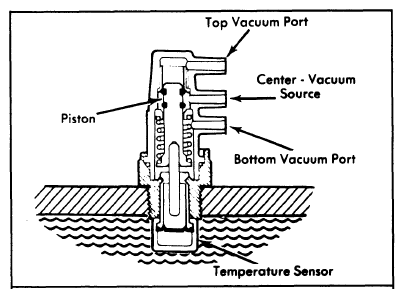

Two Port PVS
With cold engine and bottom port on PVS connected to vacuum source, the top port should have no vacuum reading. With coolant temperature above the PVS range, top port should have same vacuum as bottom port. See PVS COLOR CODES table. If PVS fails to operate as described, replace switch.
