Remove/Install Radar Sensor - AR30.30-P-1210LFM
Model 217, 222
as of model year 2018
with code 258 (COLLISION PREVENTION ASSIST)

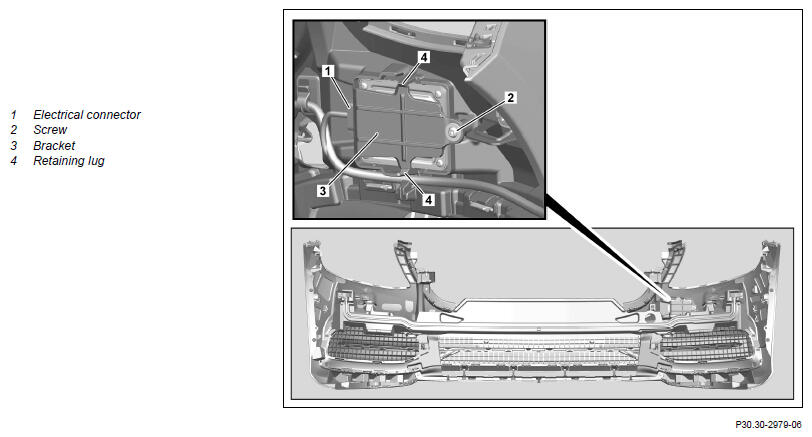

Shown on model 222.0 with code U60 (Active hood (pedestrian protection)) and with code 258 (COLLISION PREVENTION ASSIST)
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of the COLLISION PREVENTION ASSIST controller unit (A90) | When replacing the COLLISION PREVENTION ASSIST controller unit (A90). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove impact absorber | Model 222 as of model year 2018 with code 258 (COLLISION PREVENTION ASSIST) |
AR88.20-P-2050LFM |
| Model 217 as of model year 2018 with code 258 (COLLISION PREVENTION ASSIST) |
AR88.20-P-2050LC | ||
| 3 | Disconnect electrical connection (1) on COLLISION PREVENTION ASSIST controller unit (A90) | ||
| 4 | Unscrew screw/bolt (2) | ||
| 5 | Release retaining lug (4) and remove bracket (3) | ||
| 6 | Remove COLLISION PREVENTION ASSIST controller unit (A90) | ||
| 7 | Install in the reverse order |
