2021 Mercedes Benz A220 BaseFACTORY OEM SERVICE PROCEDURE
Remove/Install Accelerator Pedal/Sensor - AR30.12-P-1321MFA
Model 118, 177, 243, 247
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Position left front seat rearwards to the full extent | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

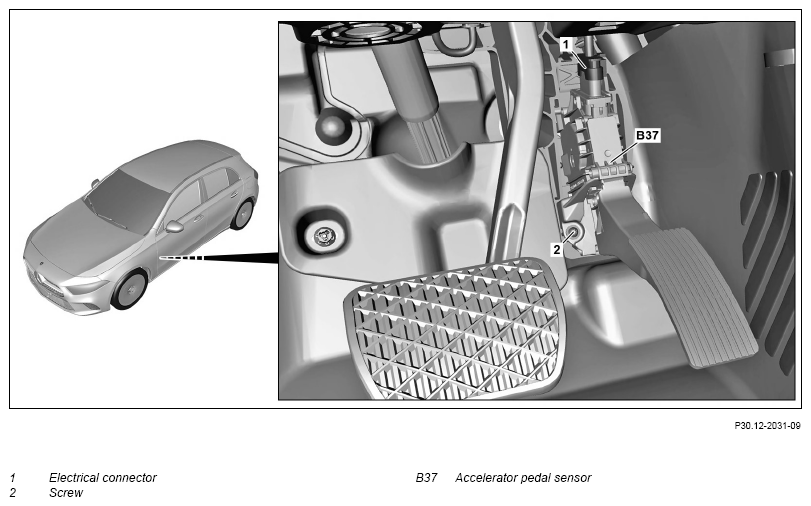

| 3 | Release and disconnect electrical connection (1) | ||
| 4 | Unscrew screw/bolt (2) | *BA29.10-P-1002-02L | |
| 5 | Remove accelerator pedal sensor (B37) | ||
| 6 | Install in the reverse order |
PEDALS, BEARING BRACKET
| Number | Designation | Model 118 | Model 177, 243, 247 | ||
|---|---|---|---|---|---|
| BA29.10-P-1002-02L | Bolt, accelerator pedal to pedal assembly | M6 | Nm | 7 | 7 |
