Ignition module location/task/design/function - GF15.15-P-3101M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 8
ENGINE 275.953 in MODEL 216, 221 up to Model Year 8
ENGINE 275.954 in MODEL 230 up to Model Year 8
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 8
ENGINE 275.982 in MODEL 216, 221 up to Model Year 8
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240
| Location of the ignition module | GF15.15-P-3101-01M | ||
| Ignition module task |
|
||

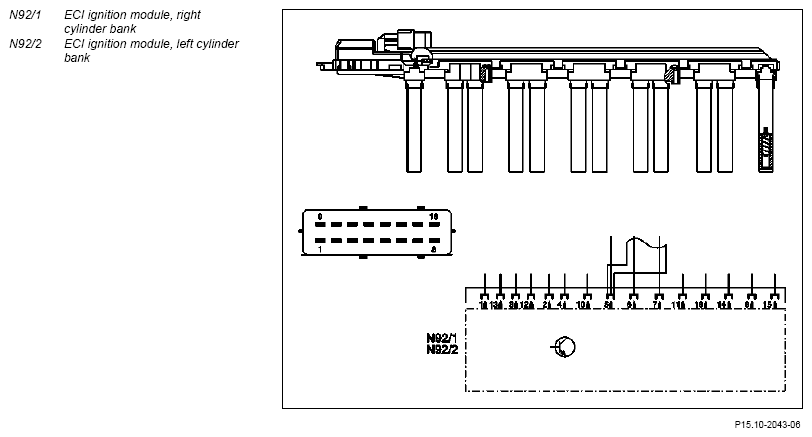

| Structure of an ignition module | The spark plug connectors cannot be removed. Only remove and install strictly according to manufacturer's instructions in order to avoid damage to the die cast housing! |
GF15.15-P-3101-02M | |
| Function of the ignition module | GF15.15-P-3101-03M |
