2013 Mercedes Benz B250FACTORY OEM SERVICE PROCEDURE

Remove/install windshield - AR67.10-P-1000P

MODEL 117, 156, 169, 171, 176, 203, 207, 209, 211, 212.1/2, 218, 230.4, 240, 242, 245.2, 246

MODEL 212.0 without CODE Z04 (Light armoring)

Shown on MODEL 203.0

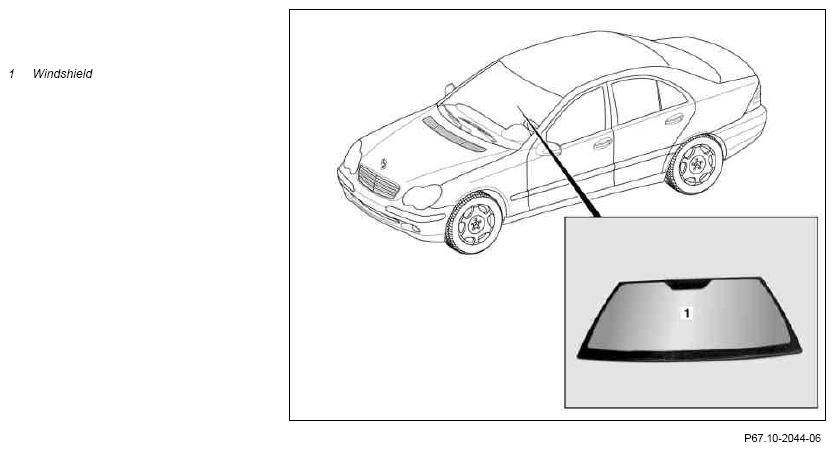

Fig 1: Identifying Windshield Remove/Install Components - Shown On Model 203.0
G09977208Courtesy of MERCEDES-BENZ USA
DANGER Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. Always remove ignition key when working on windshield wiper mechanism. AS82.30-Z-0001-01A
NOTES Notes on removal/installation of windshield   AH67.10-P-1000-01P
REMOVING Remove
1 1K Prepare-component adhesive cartridge   AR67.10-P-1000-12SX
Repair kit, installing windshields, 1-component adhesive
Cartridge gun, electric, and preheater		 *BR00.45-Z-1135-02A
SPECIAL TOOL Adapter Fig 3
2 Open driver-side window NOTES
The side window of the driver door should remain open during the curing time.
Otherwise the windshield (1) can be pressed toward outside by the air when the doors are closed.
3 Remove detachable parts in area of windshield (1) MODEL 117, 156, 176, 242, 245.2, 246 AR67.10-P-1050BK
MODEL 169 AR67.10-P-1050AK
MODEL 171 AR67.10-P-1050V
MODEL 203.0/2/7 AR67.10-P-1050P
MODEL 207 AR67.10-P-1050EC
MODEL 209 AR67.10-P-1050Q
MODEL 211.0/2/6 AR67.10-P-1050T
MODEL 212.0
without CODE Z04 (Light armoring)
MODEL 212.1/2		 AR67.10-P-1050EW
MODEL 218 AR67.10-P-1050EL
MODEL 230.4 AR67.10-P-1050R
MODEL 240 AR67.10-P-1050H
4 Cover dashboard
DANGER Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows Wear protective gloves and safety glasses. AS67.00-Z-0004-01A
5 Cut out windshield (1) with window removal tool   AR67.10-P-1000-11SX
    Glass removal
INSTALLING Install
6 Remove silicon gel of light sensor or rain/light sensor from windshield (1) MODEL 117, 156, 169, 176, 242, 245.2, 246
Only when reusing previously installed windshield (1).
7 Prepare body flange for installation of window   AR67.10-P-1501-01P
NOTES General notes about painting the body flange in the glazing area   AH98.00-P-9408-06A
Glazing repair kit, 2-component adhesive *BR00.45-Z-1015-02A
Repair kit, installing windshields, 1-component adhesive *BR00.45-Z-1135-02A
Primer stick *BR00.45-Z-1012-07A
Hepox 2K EP primer filler 4017 (Spray Max)
Wet and dry vacuum cleaner		 *BR00.45-Z-1050-07A
8 Transfer detachable parts on windshield (1) When installing new windshield (1).
9 Prepare windshield (1) for installation   AR67.10-P-1000-03P
Glazing repair kit, 2-component adhesive *BR00.45-Z-1015-02A
Repair kit, installing windshields, 1-component adhesive *BR00.45-Z-1135-02A
10.1 Replace rubber window spacers MODEL 117, 156, 169, 171, 176, 203, 207, 209, 211, 212.1/2, 218, 230.4, 242, 245.2, 246
MODEL 212.0
without CODE Z04 (Light armoring)
MODEL 117, 156, 169, 176, 242, 245.2, 246 AR67.10-P-1000-02AK
MODEL 171 AR67.10-P-1000-02V
MODEL 203, 209 AR67.10-P-1000-02P
MODEL 207, 211.0/2/6, 212, 218 AR67.10-P-1000-02T
MODEL 230.4
IMPORTANT Do not remove backing foil.
On MODEL 117, 169, 176, 242, 245.2, 246:
Use LU cleaner.		 AR67.10-P-1000-02R
Assembly cleaner *BR00.45-Z-1028-04A
10.2 Replace rubber spacers MODEL 240
  AR67.20-P-2000-03H
Shim, rear-wall window 14 X 8 X 5 mm *BR00.45-Z-1006-10A
Shim, side window at sidewall 20 X 6.5 X 5 mm *BR00.45-Z-1007-10A
Spacer *BR00.45-Z-1008-10A
11 Align windshield (1) in body opening MODEL 117, 156, 169, 171, 176, 203, 207, 209, 211, 212.1/2, 218, 230.4, 240, 242, 245.2, 246
MODEL 212.0
without CODE Z04 (Light armoring)
MODEL 117, 156, 169, 171, 176, 207, 209, 212.1/2, 218, 230.4, 242, 245.2, 246
MODEL 212.0
without CODE Z04 (Light armoring)		 AR67.10-P-1000-04G
MODEL 203 (except 203.7)
without CODE 413 (Automatic panoramic sliding sunroof)		 AR67.10-P-1000-04P
MODEL 203.7
with CODE 413 (Automatic panoramic sliding sunroof)		 AR67.10-P-1000-04PB
MODEL 211.0/2/6
IMPORTANT Aid of helper required. Observe distance and gap dimension.		 AR67.10-P-1000-04T
MODEL 117
MODEL 156
MODEL 169
MODEL 176
MODEL 242
with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 242
without CODE 413 (Automatic panoramic sliding sunroof)
MODEL 245
MODEL 246
with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 246
without CODE 413 (Automatic panoramic sliding sunroof)		 *BE67.10-P-1001-01E
MODEL 171
MODEL 203
MODEL 209.3
MODEL 209.4
MODEL 230		 *BE67.10-P-1001-01A
MODEL 207
MODEL 212.0
without CODE Z04 (Light armoring)
MODEL 212.1/2
MODEL 218		 *BE67.10-P-1001-01G
MODEL 211
without CODE 413 (Automatic panoramic sliding sunroof)
without CODE 419 (Solar module for interior ventilation)		 *BE67.10-P-1001-01C
MODEL 211
with CODE 413 (Automatic panoramic sliding sunroof)
with CODE 419 (Solar module for interior ventilation)
Cup suction tool/suspension equipment (for window removal/installation)		 *BE67.10-P-1002-01C
SPECIAL TOOL Feeler gauge Fig 2
12 Remove protective foil from rubber window spacers MODEL 117, 156, 169, 171, 176, 203, 207, 209, 211, 212.1/2, 218, 230.4, 242, 245.2, 246
MODEL 212.0
without CODE Z04 (Light armoring)
13 Apply adhesive material MODEL 117, 156, 169, 171, 176, 203, 207, 209, 211, 212.1/2, 218, 230.4, 242, 245.2, 246
MODEL 212.0
without CODE Z04 (Light armoring)		 AR67.10-P-1000-08P
MODEL 240 AR67.10-P-1000-08H
Glazing repair kit, 2-component adhesive *BR00.45-Z-1015-02A
Repair kit, installing windshields, 1-component adhesive
Cartridge gun, electric, and preheater		 *BR00.45-Z-1135-02A
SPECIAL TOOL Adapter Fig 3
14 Install windshield (1) MODEL 117, 156, 169, 171, 176, 203, 207, 209, 211, 212.1/2, 218, 230.4, 242, 245.2, 246
MODEL 212.0
without CODE Z04 (Light armoring)		 AR67.10-P-1503-01P
MODEL 240
IMPORTANT Aid of helper required.
Cup suction tool/suspension equipment (for window removal/installation)		 AR67.10-P-1503-01H
15 Install detachable parts in area of windshield (1) MODEL 117, 156, 176, 242, 245.2, 246 AR67.10-P-1050BK
MODEL 169 AR67.10-P-1050AK
MODEL 171 AR67.10-P-1050V
MODEL 203.0/2/7 AR67.10-P-1050P
MODEL 207 AR67.10-P-1050EC
MODEL 209 AR67.10-P-1050Q
MODEL 211.0/2/6 AR67.10-P-1050T
MODEL 212.0
without CODE Z04 (Light armoring)
MODEL 212.1/2		 AR67.10-P-1050EW
MODEL 218 AR67.10-P-1050EL
MODEL 230.4 AR67.10-P-1050R
MODEL 240 AR67.10-P-1050H
16 Remove cover from dashboard
17 Check all electrical consumers in area repaired for proper function
18 Close side window in driver door
19 Clean windshield (1) and vehicle interior
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 170, 171 MODEL 203
BE67.10-P-1001-01A Distance between windshield upper edge and front edge of roof Dimension "A" mm 12 12
Picture AR67.10-P-1000-04G AR67.10-P-1000-04E
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 209.3 MODEL 209.4
BE67.10-P-1001-01A Distance between windshield upper edge and front edge of roof Dimension "A" mm 13 9
- - -
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 230
BE67.10-P-1001-01A Distance between windshield upper edge and front edge of roof Dimension "A" mm 10
- -
CHECK VALUES FOR WINDSHIELD

Number Designation MODEL 211 except CODE 413 except CODE 419
BE67.10-P-1001-01C Distance between molding on windshield and front edge of roof mm 2
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 117 MODEL 156
BE67.10-P-1001-01E Distance between top edge of windshield and front edge of roof Dimension "A" mm 3, 5 (±1, 5) 3, 2 (±1, 0)
Picture AR67.10-P-1000-04G AR67.10-P-1000-04G
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 169 MODEL 176
BE67.10-P-1001-01E Distance between top edge of windshield and front edge of roof Dimension "A" mm 3, 0 (±1, 0) 4
Picture AR67.10-P-1000-04G AR67.10-P-1000-04G
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 242 except CODE 413 MODEL 242 with CODE 413
BE67.10-P-1001-01E Distance between top edge of windshield and front edge of roof Dimension "A" mm 2, 6 (±1, 0) 3, 0 (±1, 0)
Picture AR67.10-P-1000-04G AR67.10-P-1000-04G
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 245 MODEL 246 except CODE 413
BE67.10-P-1001-01E Distance between top edge of windshield and front edge of roof Dimension "A" mm 3, 5 (±1, 0) 4
Picture AR67.10-P-1000-04G AR67.10-P-1000-04G
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 246 with CODE 413
BE67.10-P-1001-01E Distance between top edge of windshield and front edge of roof Dimension "A" mm 3, 0 (±1, 0)
Picture AR67.10-P-1000-04G
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 207 MODEL 212
BE67.10-P-1001-01G Distance between top edge of window and transition between rabbet and front edge of roof Dimension "a" mm 3, 5 (±1) 5 (±1)
- - -
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD

Number Designation MODEL 218
BE67.10-P-1001-01G Distance between top edge of window and transition between rabbet and front edge of roof Dimension "a" mm 3, 5 (±1)
- -
CHECK VALUES FOR WINDSHIELD

Number Designation MODEL 211 with CODE 413 with CODE 419
BE67.10-P-1002-01C Distance between top edge of window and base center point of clip attaching trim strip at top mm 4, 5
Fig 2: Identifying Feeler Gauge (129 589 03 21 00)
G07469060Courtesy of MERCEDES-BENZ USA
