Starter control, function - GF15.30-P-3000M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 8
ENGINE 275.953 in MODEL 216, 221 up to Model Year 8
ENGINE 275.954 in MODEL 230 up to Model Year 8
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 8
ENGINE 275.982 in MODEL 216, 221 up to Model Year 8
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

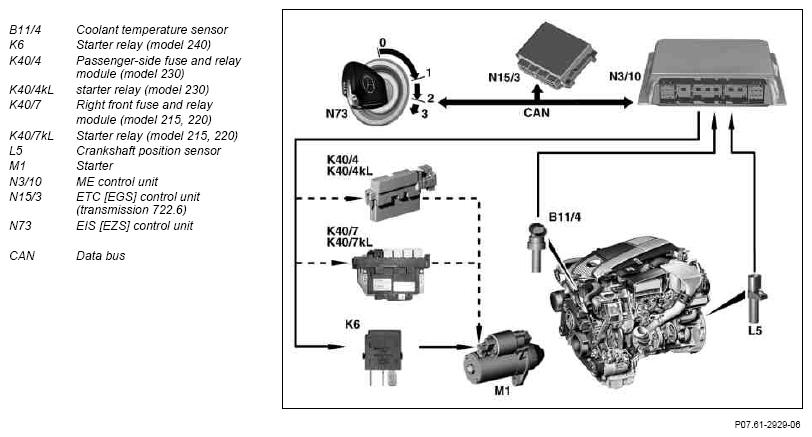

Illustrated model 215, 220, 230, 240
The starter control takes over the actuation of the starter (M1) and interrupts the circuit (circuit 50) to the solenoid switch of the starter (starter deactivation) after reaching the engine cranking speed.
By actuating the ignition starter switch at the electronic ignition switch control unit (N73), from position "2" (ignition ON) in position "3" (START), starter detection is performed by the ME control unit (N3/10).
The solenoid switch of the starter is actuated by the ME control unit via the starter relay.
The voltage supply of the starter relay (coil) is supplied through circuit 87. The starter relay is actuated by the ME control unit with a ground signal.
If the starting procedure has started, the actuation of the ignition starter switch from position "3" back into position "2" no longer has any influence (touch start).
When reaching the engine cranking speed of 400 up to 700 rpm or a starting time of approx. 5 to 40 seconds (dependent on the engine temperature), the ME control unit interrupts the negative activation to the starter relay and therefore ends the starting procedure.
| ME-SFI control unit, location/task/design/function | GF07.61-P-5000M | ||
| Voltage supply of ME-SFI control unit, function | Model 215, 220, 240 | GF07.61-P-5001M | |
| Model 216, 221 | GF07.61-P-5001MS | ||
| Model 230 | GF07.61-P-5001R | ||
| Crankshaft position sensor, location/task/design/function | GF07.04-P-4116M | ||
| Coolant temperature sensor, location/task/design/function | GF07.04-P-5026M | ||
| ETC control unit, location/task | Selector lever position information P/N and driving position engaged. Transmission 722.6 |
GF27.19-P-4012G |
