1993 Mercedes Benz 400EFACTORY OEM SERVICE PROCEDURE
Electrical System Tests Component Locations (Section 21)
ELECTRICAL SYSTEM TESTS COMPONENT LOCATIONS (SECTION 21)

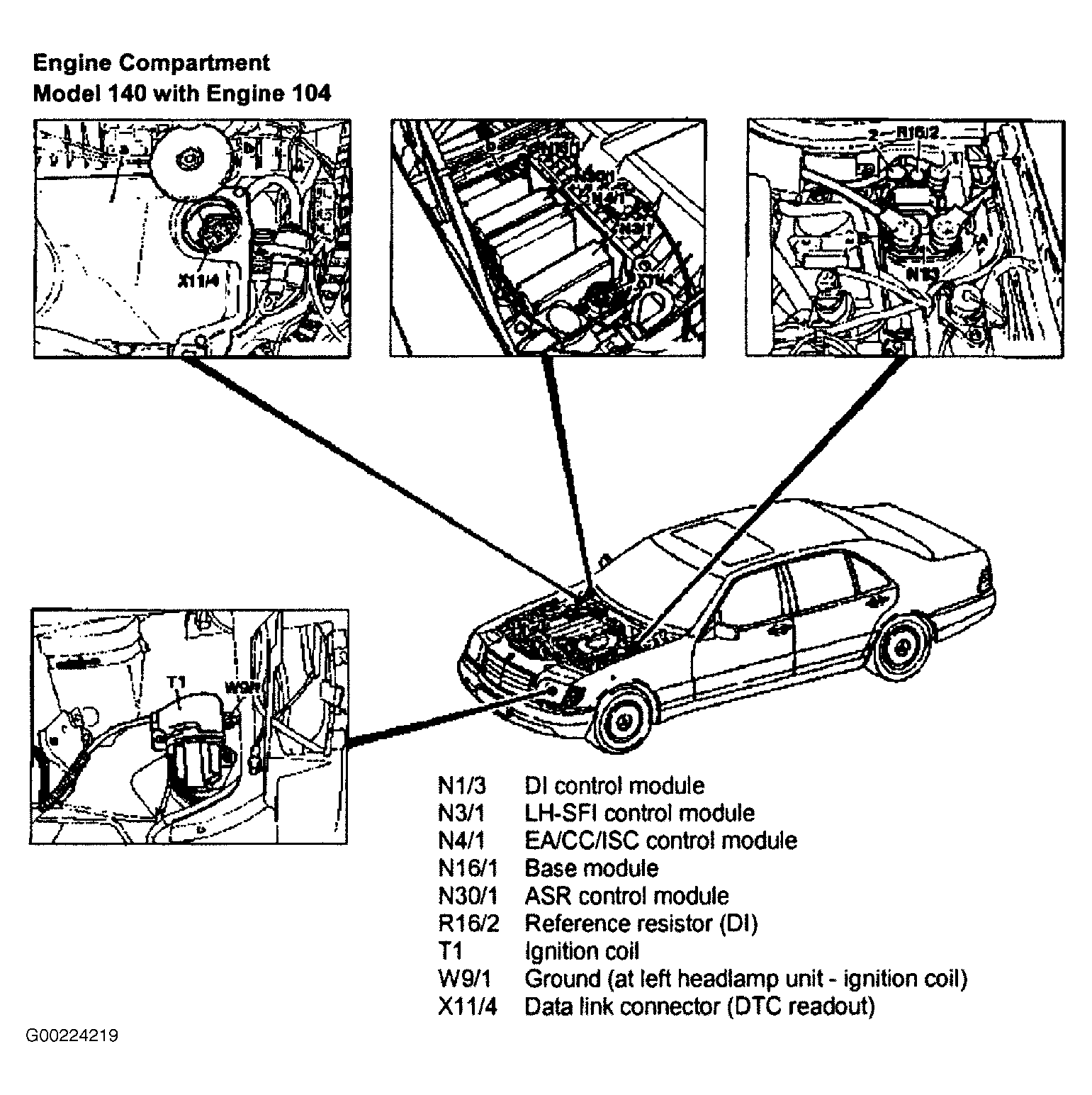

| Component | See | |
|---|---|---|
| ASR Control Module (N30/1) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| Base Module (N16/1) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| CKP Sensor (L5) | ||
| Engine 104 | Fig 2 | |
| Engine 119 | Fig 5 | |
| CMP Sensor (L5/1) | ||
| Engine 104 | Fig 2 | |
| Engine 119 | Fig 5 | |
| Data Link Connector - DTC Readout (X11/4) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| DI Control Module (N1/3) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| EA/CC/ISC Control Module (N4/1) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| High Voltage Distributor (S5/3) | ||
| Engine 104 | Fig 2 | |
| Ignition Coil (T1) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Ignition Coil 1 - Right Cylinder Bank (T1/1) | ||
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| Ignition Coil 2 - Left Cylinder Bank (T1/2) | ||
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| Knock Sensors (A16) | ||
| Engine 104 | Fig 2 | |
| Engine 119 | Fig 5 | |
| KS 1 (A16) - Right Side Of Engine | ||
| Engine 119 | Fig 5 | |
| KS 2 (A16g1) - Left Side Of Engine | ||
| Engine 119 | Fig 5 | |
| Left High Voltage Distributor (S5/5) | ||
| Engine 119 | Fig 5 | |
| LH-SFI Control Module (N3/1) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| Reference Resistor - DI (R16/2) | ||
| Model 140 W/Engine 104 | Fig 1 | |
| Model 124 W/Engine 119 | Fig 3 | |
| Model 140 W/Engine 119 | Fig 4 | |
| Right High Voltage Distributor (S5/6) | ||
| Engine 119 | Fig 5 | |
| Trasmission Overload Protection Switch (S65) | ||
| Engine 104 | Fig 2 | |
| Engine 119 | Fig 5 | |
