1993 Mercedes Benz 400EFACTORY OEM SERVICE PROCEDURE
Electrical System Tests Component Locations (Section 21)
ELECTRICAL SYSTEM TESTS COMPONENT LOCATIONS (SECTION 21)

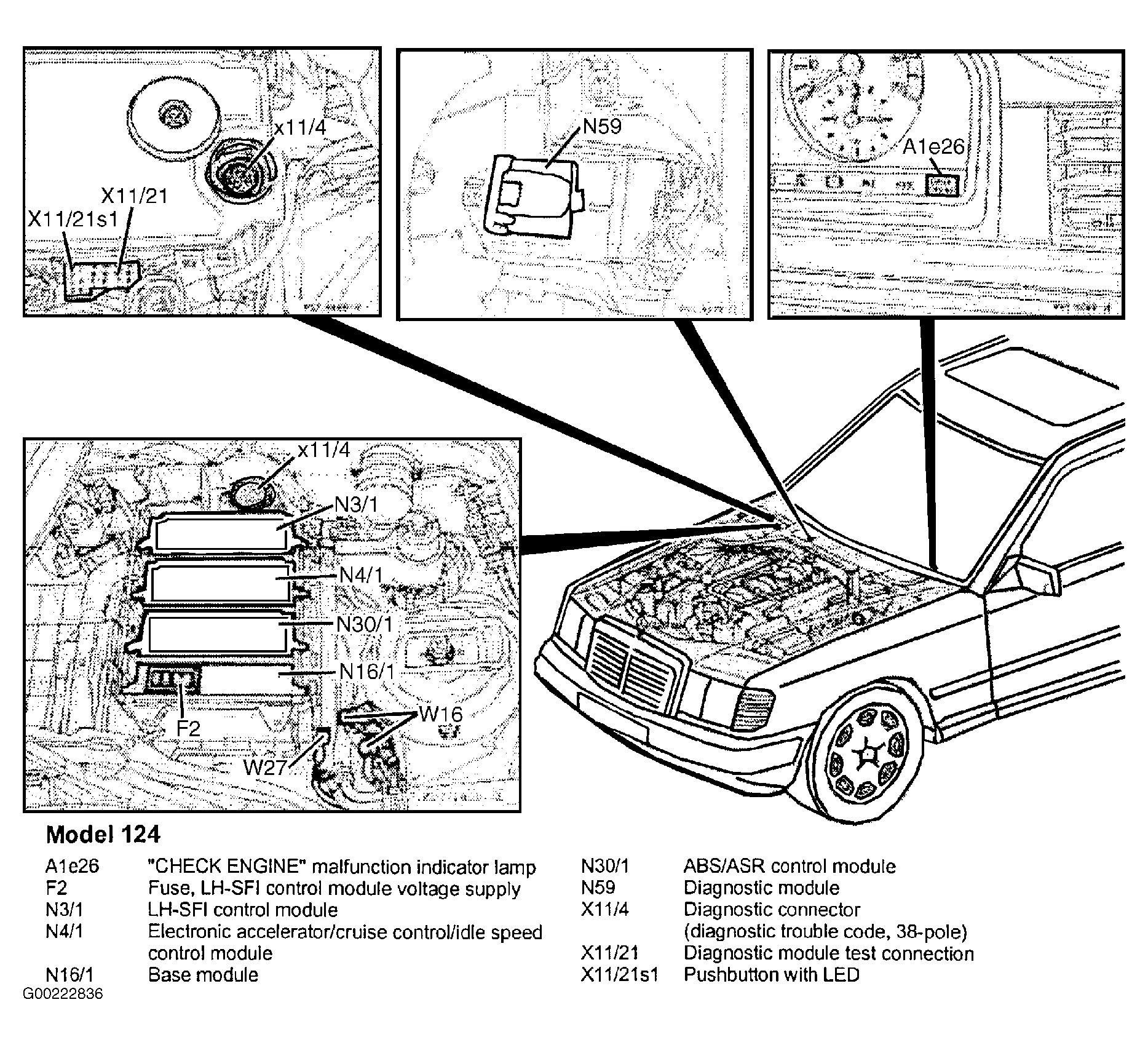

| Component | See | |
|---|---|---|
| CHECK ENGINE MIL (A1e26) | Fig 1 | |
| Fuse, LH-SFI Control Module Voltage Supply (F2) | Fig 1 | |
| LH-SFI Control Module (N3/1) | Fig 1 | |
| Electronic Accelerator/Cruise Control/Idle Speed Control Module (N4/1) | Fig 1 | |
| Base Module (N16/1) | Fig 1 | |
| ABS/ASR Control Module (N30/1) | Fig 1 | |
| Diagnostic Module (N59) | Fig 1 | |
| Diagnostic Connector - Diagnostic Trouble Code, 38 Pole (X11/4) | Fig 1 | |
| Diagnostic Module Test Connection (X11/21) | Fig 1 | |
| Pushbutton W/LED (X11/21s1) | Fig 1 | |
