1993 Mercedes Benz 400EFACTORY OEM SERVICE PROCEDURE
Test Preparation For DTC Readout

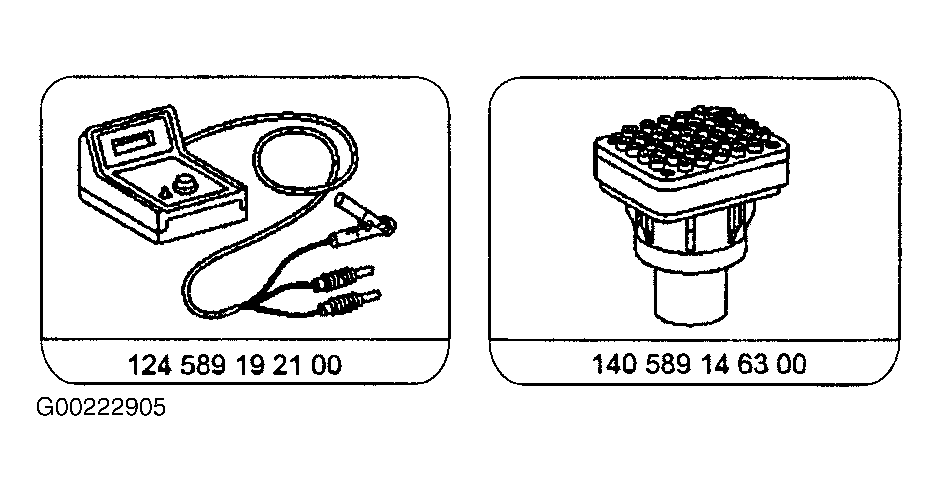

- Connect impulse counter scan tool and adapter or HHT to data link connector (X11/4).
- Connect Yellow wire from impulse counter scan tool as follows:
- Socket 8
Base Module - BM (N16/1) - Socket 6
ABS or ASR control module (N30 or N30/1) or ASR/SPS control module (N47-1) or ESP/SPS control module (N47-5) - Socket 12
SPS control module (N49/1) - Socket 11
ADS control module (N51) - Socket 4
EDS control module (N39), LH-SFI or Right LH-SFI control module (N3/1 or N3/3), ME-SFI right engine control module (N3/10 or N3/12) - Socket 5
Left LH-SFI control module (N3/2) or ME-SFI left engine control module (N3/11)
- Socket 8
- Turn ignition ON.
- Read DTC memory (as applicable) for appropriately connected BM, ASR, ASR/SPS, ESP/SPS. ME-SFI, ADS, LH-SFI control modules.
