Diagnostic Trouble Code Definitions

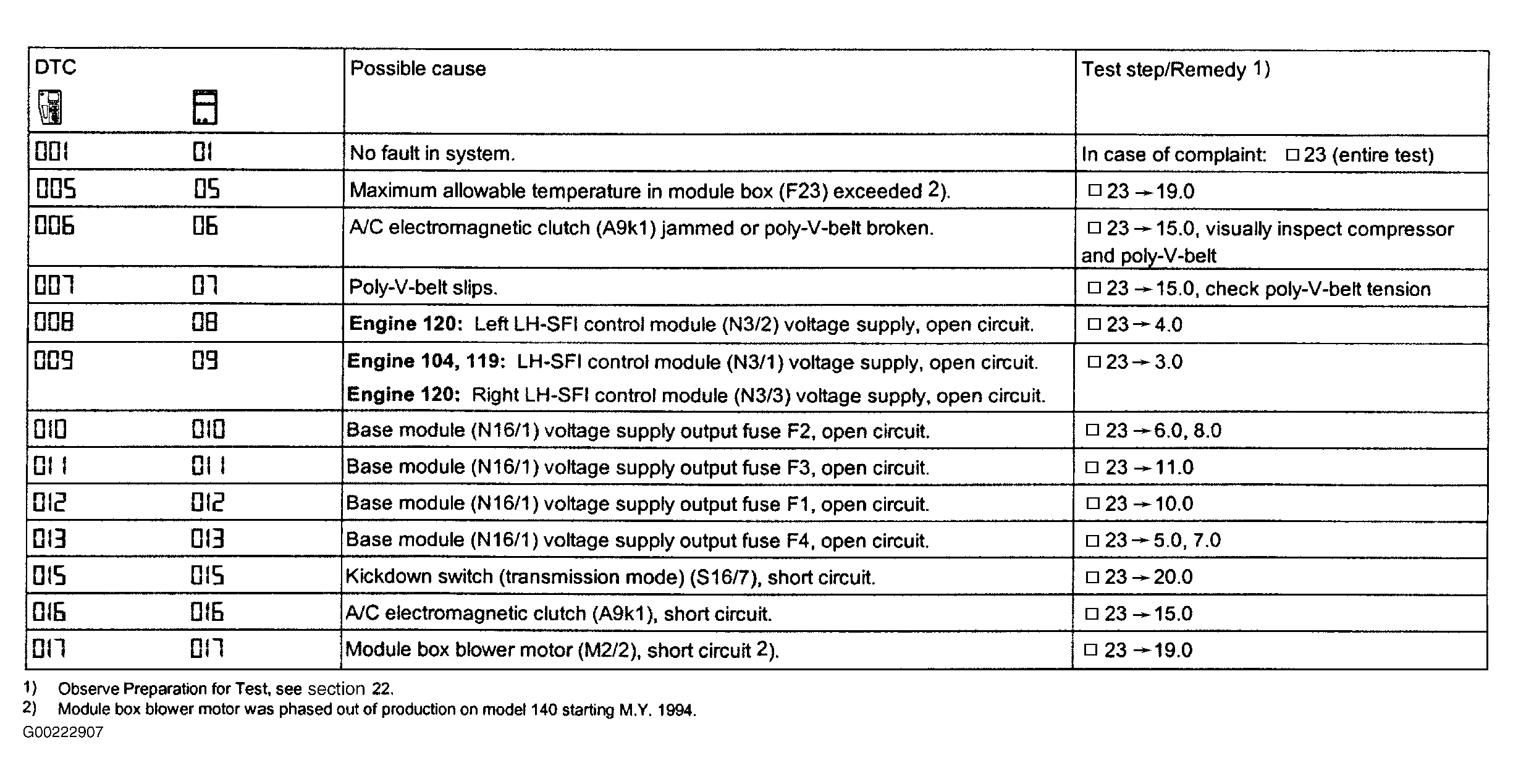

In Fig 1 the 1 and 2 digit codes in the left hand column are for generic scan tools. The 3 digit codes starting with zero or 1 are read from the Mercedes-Benz factory scan tool. See BASE MODULE TROUBLE CODE REFERENCE CHART (SECTION 11) .
| Generic DTC | Mercedes Benz DTC | See |
|---|---|---|
| 001 | 01 | Fig 1 |
| 005 | 05 | Fig 1 |
| 006 | 06 | Fig 1 |
| 007 | 07 | Fig 1 |
| 008 | 08 | Fig 1 |
| 009 | 09 | Fig 1 |
| 010 | 010 | Fig 1 |
| 011 | 011 | Fig 1 |
| 012 | 012 | Fig 1 |
| 013 | 013 | Fig 1 |
| 015 | 015 | Fig 1 |
| 016 | 016 | Fig 1 |
| 017 | 017 | Fig 1 |
