1993 Mercedes Benz 400EFACTORY OEM SERVICE PROCEDURE
LH-SFI Equipped Vehicles
- A 4-pole CTS is used for EZL/AKR ignition systems. It combines 2 sensors into one housing. Neither sensor is connected to housing for grounding purposes. One sensor is for EZL/AKR ignition system and other sensor is for LH-SFI fuel injection system. Both CTS sensors are internally identical so that harness connector can be attached in any position to CTS.

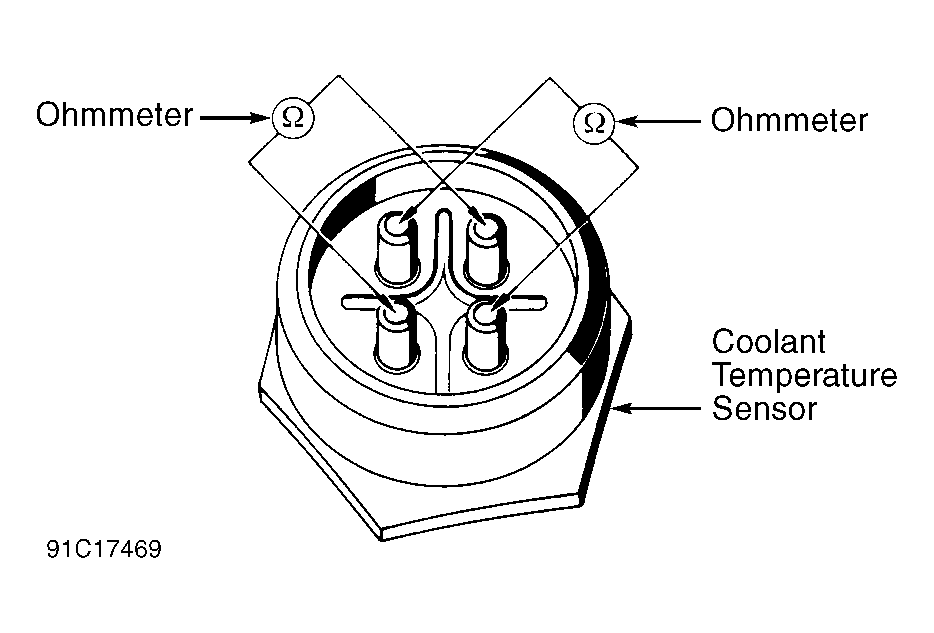

- Unplug CTS harness connector. Using ohmmeter, check resistance value across diagonally opposite terminals of CTS. See Fig 1 . Refer to appropriate COOLANT TEMPERATURE SENSOR SPECIFICATIONS table for resistance and voltage specification at engine coolant temperature. If resistance or voltage values are not to specification, replace coolant temperature sensor.
COOLANT TEMPERATURE SENSOR SPECIFICATIONS (LH-SFI 4.2L)
| Temperature °F (°C) | (1) Ohms | Volts | ||
|---|---|---|---|---|
| -4 (-20) | 15,700 | 5.12-5.60 | ||
| 14 (-10) | 10,000 | 4.49-5.11 | ||
| 32 (0) | 5900 | 4.12-4.48 | ||
| 50 (10) | 3700 | 3.77-4.12 | ||
| 68 (20) | 2500 | 3.36-3.76 | ||
| 86 (30) | 1700 | 2.92-3.35 | ||
| 104 (40) | 1170 | 2.51-2.91 | ||
| 122 (50) | 830 | 2.09-2.50 | ||
| 140 (60) | 600 | 1.69-2.08 | ||
| 158 (70) | 435 | 1.36-1.68 | ||
| 176 (80) | 325 | 1.09-1.35 | ||
| 194 (90) | 245 | .88-1.08 | ||
| 212 (100) | 185 | .75-.87 | ||
|
||||
