1993 Mercedes Benz 400EFACTORY OEM SERVICE PROCEDURE

Preparation For Test (Section 22)

CAUTION: To avoid damaging control modules all electrical testing should be done with a DVOM. DO NOT use an analog meter or test light to check control module circuits.

Turn ignition OFF. Remove CC/ISC control module (N4/3). Connect socket box, see Fig 1 -Figure .

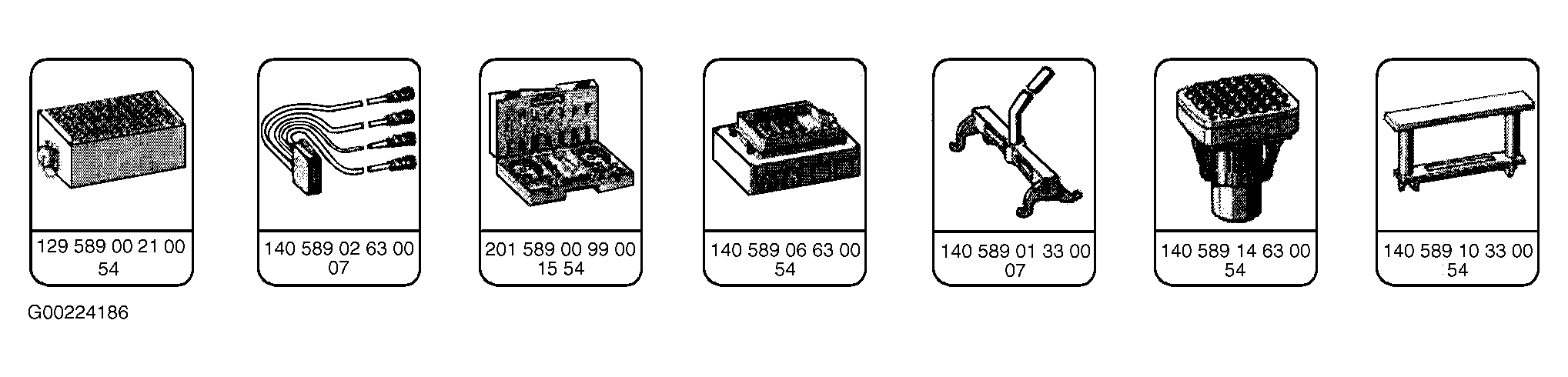

Fig 1: Identifying Special Tools
G00224186Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
