2023 Mazda CX-5 SFACTORY OEM SERVICE PROCEDURE

Pcm Removal/Installation: Notes

Replacement Part

Set bolt
Quantity: 2
Location of use: PCM cover
CAUTION:
  • There are two types of PCM settings. If the incorrect PCM is installed, it could cause interference with engine control.
  • When replacing the PCM, verify the first four digits of the part number indicated on the PCM label before replacement, and replace the PCM with one having the same part number.
G13111333Courtesy of MAZDA MOTORS CORP.
  • If configuration is not performed when the PCM is replaced with a new one, the vehicle specification information is not stored in the PCM and the system will not operate normally.
  • When performing configuration, it is necessary to read the vehicle specification information from the PCM before replacing it. Connect the M-MDS to the vehicle and perform vehicle identification before removing the PCM. The vehicle specification information is temporarily stored in the M-MDS.
NOTE:
  • The PCM prior to replacement stores the vehicle specification information.
  • A new PCM does not store any vehicle specification information.
  • If the vehicle specification information PCM prior to replacement cannot be read, perform the configuration using As-Built data.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the PCM cover. (See PCM Cover Installation Note .)

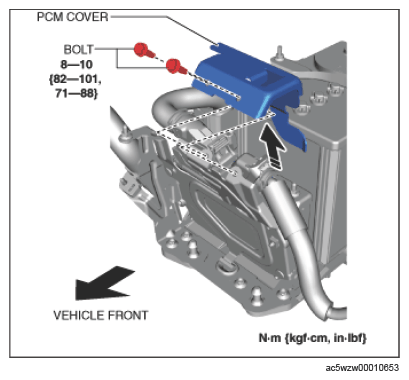

    Fig 1: PCM Cover And Bolts With Torque Specification
    G15630453Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the PCM connector. (See PCM Connector Connection Note .)

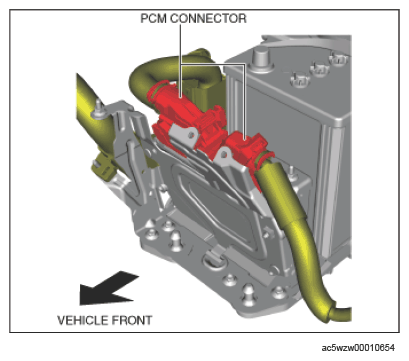

    G15630454Courtesy of MAZDA MOTORS CORP.
  4. Remove the PCM assembly from the battery tray. (See PCM Assembly Installation Note .)
    Fig 2: PCM Assembly, Battery Tray And Nuts With Torque Specification

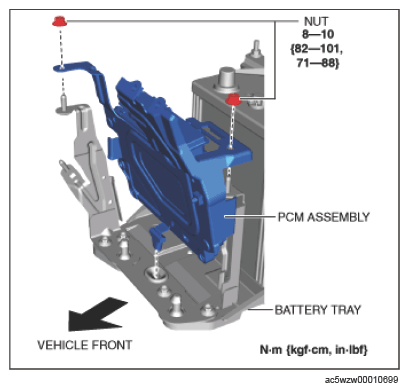

    G15630455Courtesy of MAZDA MOTORS CORP.
  5. Remove the PCM from the PCM bracket.
    Fig 3: PCM Bracket, Bolt And Nut With Torque Specification

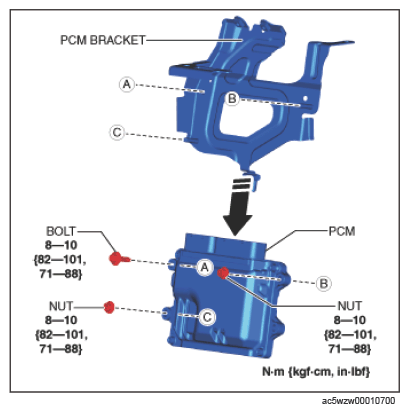

    G15630456Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. When replacing the PCM on the vehicles, perform the following:
    NOTE:
    • If configuration cannot be performed by reading/writing of the vehicle specification information, perform the configuration using As-Built information after replacing the PCM. (See PCM CONFIGURATION (USING AS-BUILT DATA) .)
    1. Perform the PCM configuration. (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) .)
    2. Perform the immobilizer system-related part programming. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING .)
    3. Switch the ignition off, and disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
