2022 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Adjuster Anchor Removal/Installation: Notes
WARNING:
- The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery terminal or work carefully, avoiding excessive impact to the lower part of the B-pillar.
- Switch the ignition off.
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Set the front seat belt adjuster to the lowest position.
- Remove the following parts:
- B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
- Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)

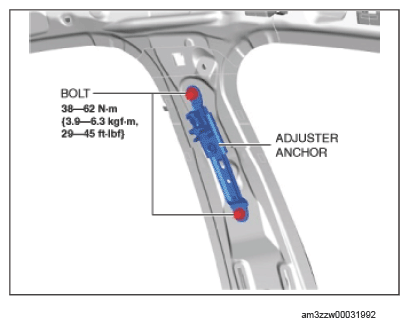

- Remove the bolt.
- Remove the adjuster anchor.
- Install in the reverse order of removal. (See Bolt Installation Note .)
