Condenser Removal/Installation (VIN Y): Notes

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Replacement Part

O-ring (cooler hose (HI))
Quantity: 1
Location of use: Condenser		 O-ring (cooler pipe)
Quantity: 1
Location of use: Condenser
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Discharge the refrigerant. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING (US) .)
  3. Remove the front under cover No. 1 and the front under cover No. 2. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [(VIN Y) (US)] .)
  5. Drain the water-cooled charge air cooler coolant. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [(VIN Y) (US)] .)
  6. Remove the following parts:
    1. Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [(VIN Y) (US)] .)
    2. Air cleaner, air hose and fresh air duct component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [(VIN Y) (US)] .)
    3. Water-cooled charge air cooler reserve tank (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION [(VIN Y) (US)] .)
    4. Cooling fan component (See COOLING FAN MOTOR REMOVAL/INSTALLATION [(VIN Y) (US)] .)
    5. Radiator (See RADIATOR REMOVAL/INSTALLATION [(VIN Y) (US)] .)
  7. Remove the bolts.

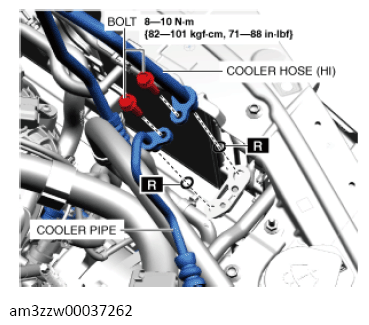

    Fig 1: Cooler Hose (HI), Cooler Pipe And Bolts With Torque Specification
    G13559142Courtesy of MAZDA MOTORS CORP.
