2022 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Tweeter Removal/Installation
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)

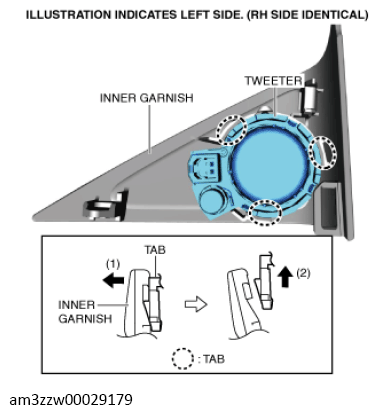

- Move the inner garnish in the order of arrows (1) and (2) shown in the figure and detach the tabs from the inner garnish.

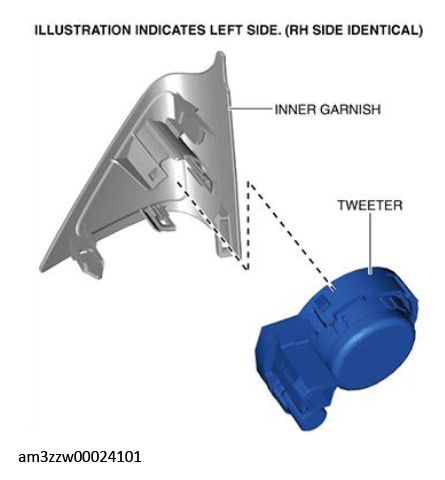

- Remove the tweeter from the inner garnish.
- Install in the reverse order of removal.
