2021 Mazda MX-5 Miata Club, Automatic TransFACTORY OEM SERVICE PROCEDURE

Quick Diagnostic Chart

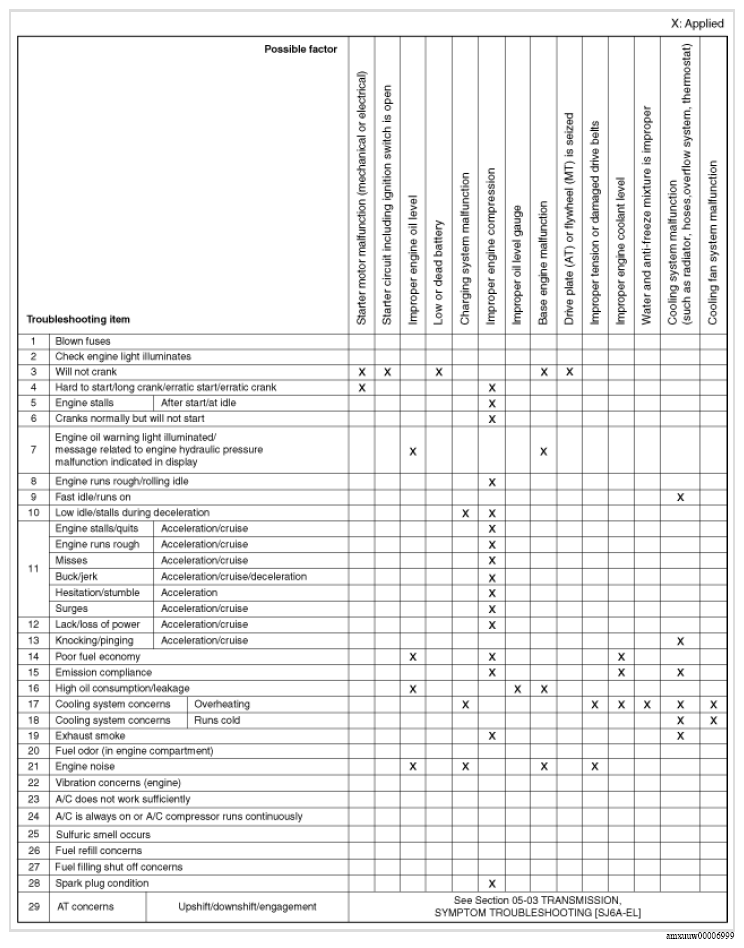

G13487834

Courtesy of MAZDA MOTORS CORP.

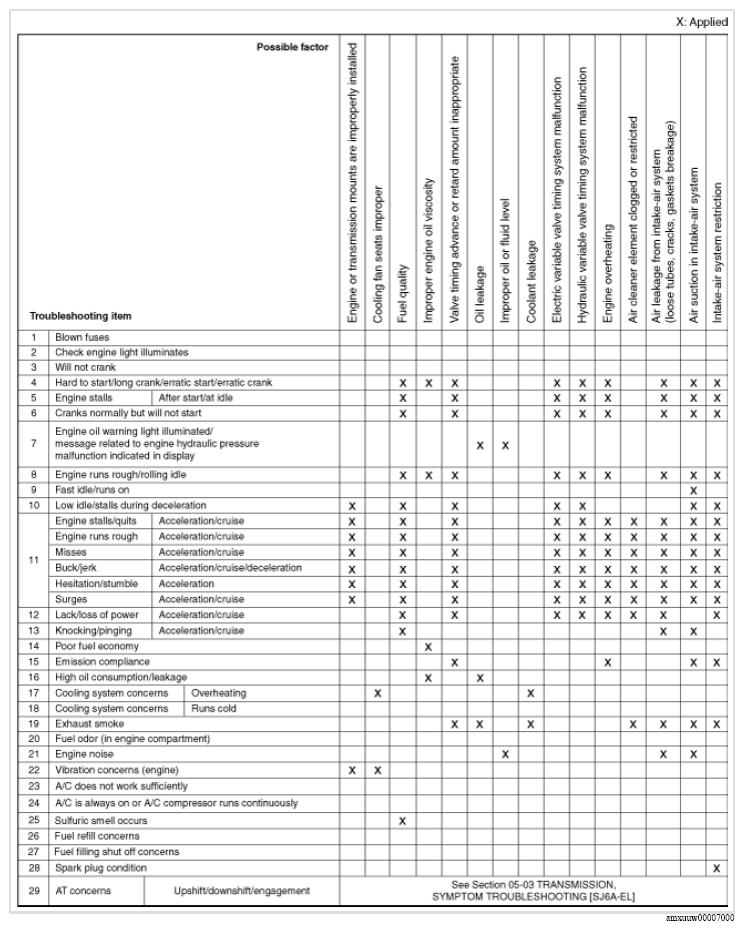

G13487835

Courtesy of MAZDA MOTORS CORP.

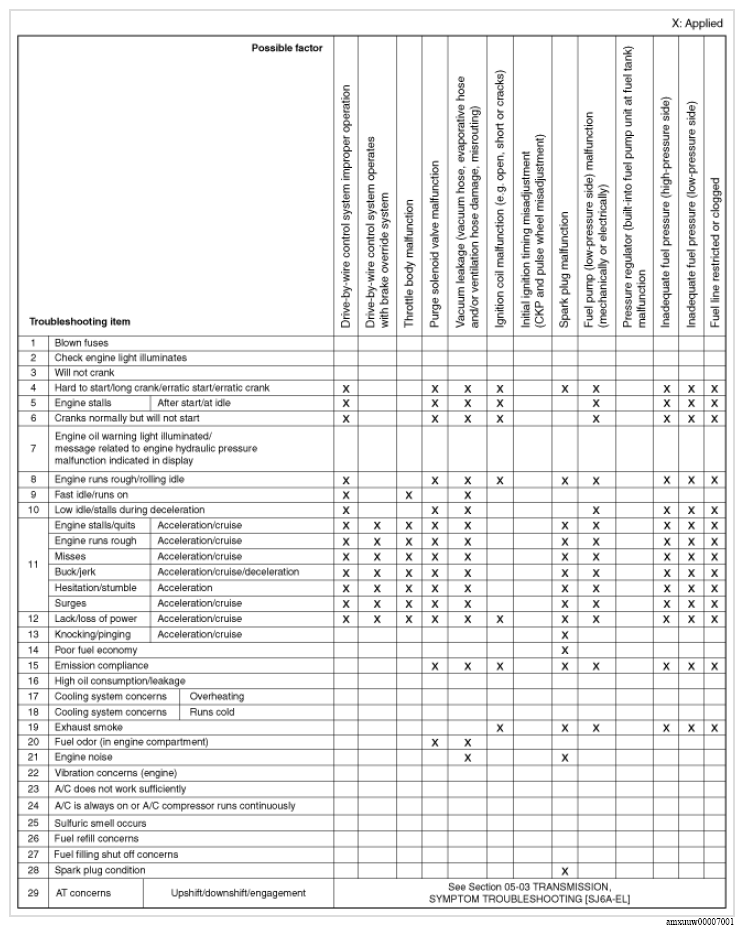

G13487836

Courtesy of MAZDA MOTORS CORP.

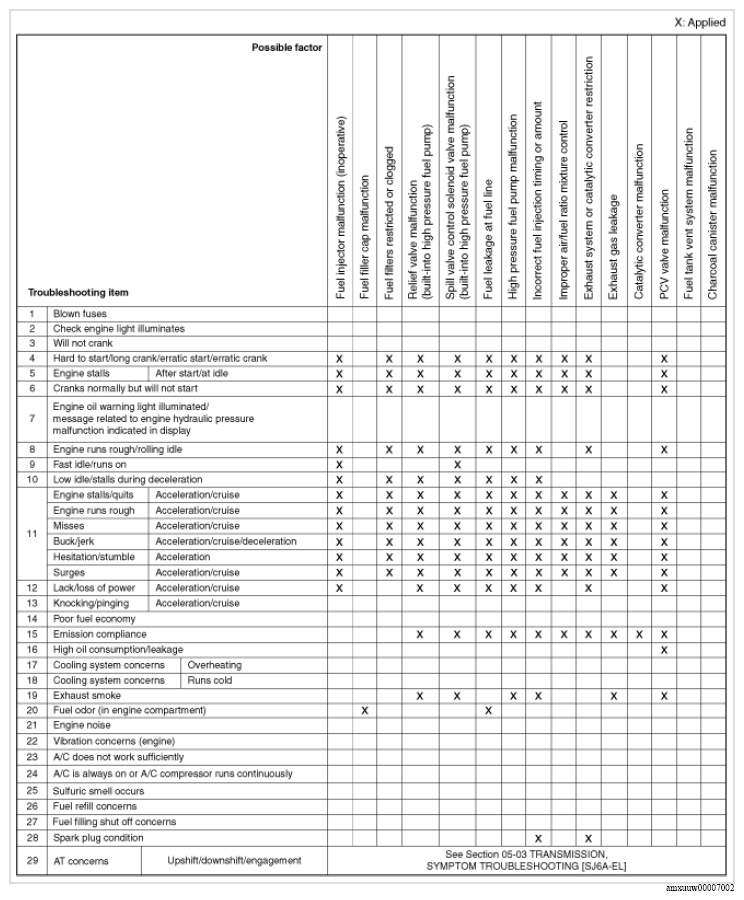

G13487837

Courtesy of MAZDA MOTORS CORP.

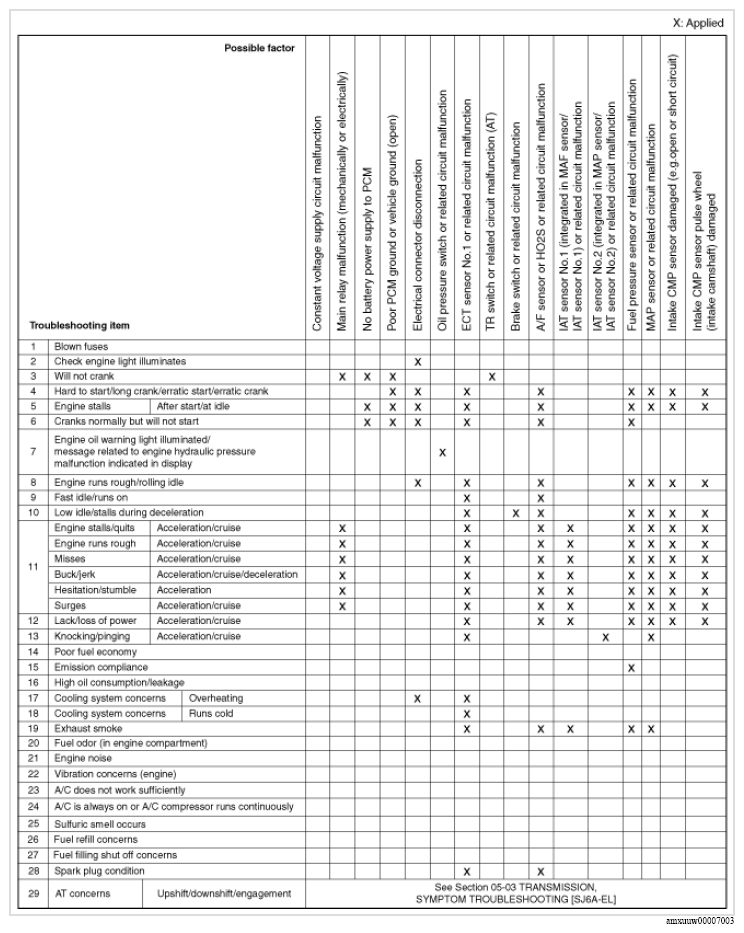

G13487838

Courtesy of MAZDA MOTORS CORP.

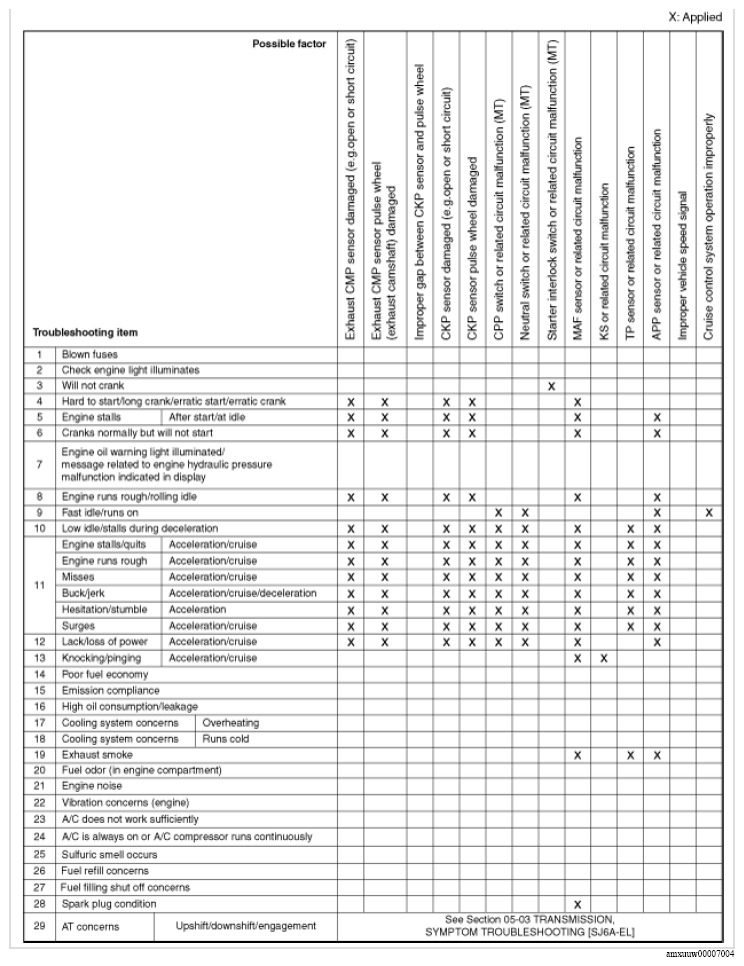

G13487839

Courtesy of MAZDA MOTORS CORP.

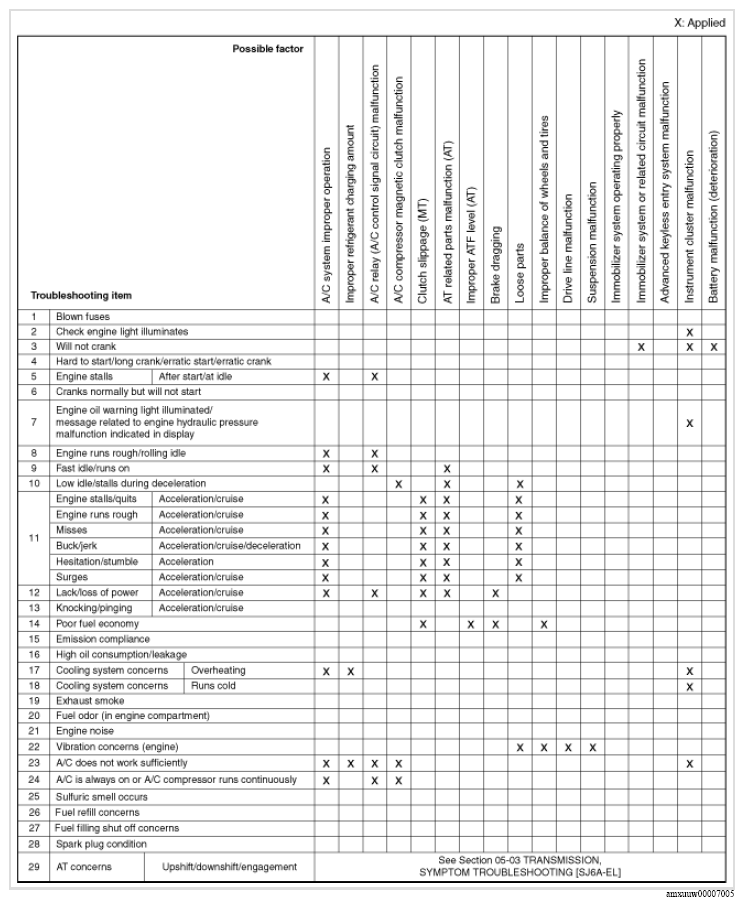

G13487840

Courtesy of MAZDA MOTORS CORP.

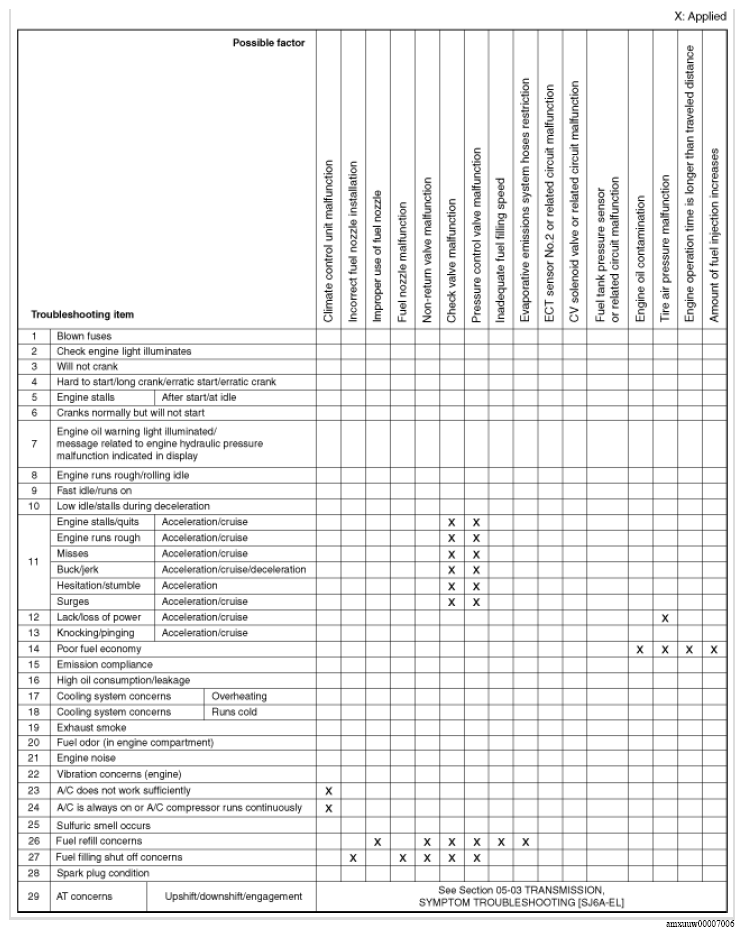

G13487841

Courtesy of MAZDA MOTORS CORP.
