2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
Shift-lock Override Button Inspection
- Switch the ignition off.
- Verify that the selector lever is in the P position.
- Without the brake pedal depressed, verify that the selector lever cannot be shifted from the P position.

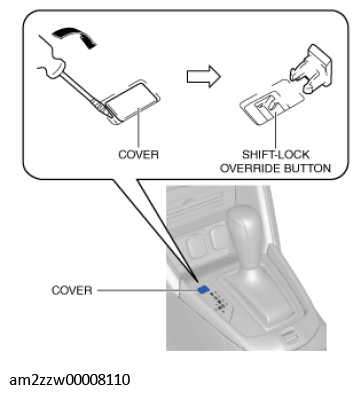

- Remove the shift-lock override cover using a tape-wrapped flathead screwdriver.
- Insert the flathead screwdriver and press the shift-lock override button.
- Verify that the selector lever can be shifted from the P position.
- If not as verified, replace the selector lever. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
