2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
Line Pressure Test
- Perform the mechanical system test preparation. (See MECHANICAL SYSTEM TEST PREPARATION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)

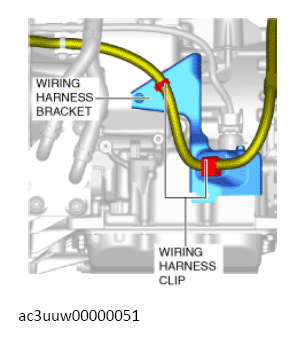

- Disconnect the wiring harness clips from the harness bracket.
- Remove the front splash shield. (LH) (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the wiring harness bracket installation bolts from the transaxle and set it aside.

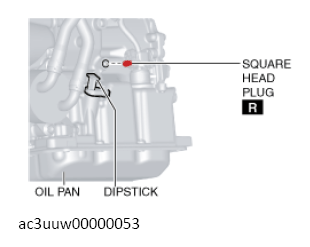

- Remove the pressure detection square head plug.WARNING:
- Do not remove the square head plug when the ATF temperature is high. Otherwise, ATF could overflow and cause severe burns or serious injury. Remove the square head plug when the transaxle and ATF temperatures are low.
