2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE

Drive Plate Removal/Installation: Notes

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6AX-EL] .)

Remove in the order indicated in the table.

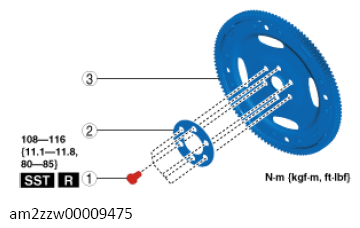

Fig 1: Drive Plate Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Drive plate installation bolts (See Drive Plate Installation Bolts Removal Note .) (See Drive Plate Installation Bolts Installation Note .)
2	Backing plate
3	Drive plate

Install in the reverse order of removal.
