2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
Fuel Pump Control Module Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- Disconnect the fuel pump control module connector.

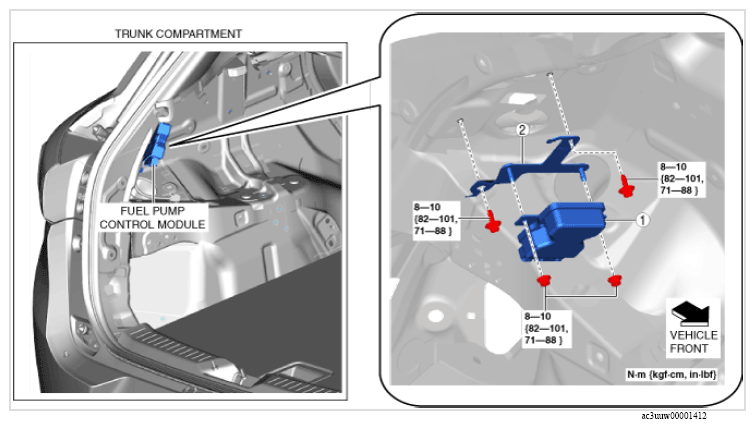

- Remove in the order indicated in the table.COMPONENT DESCRIPTION
1 Fuel pump control module 2 Fuel pump control module bracket - Install in the reverse order of removal.
