2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE

Stopper Ring Removal Note

NOTE:
  • When removing the stopper ring, do not damage the fuel injector with the tool.

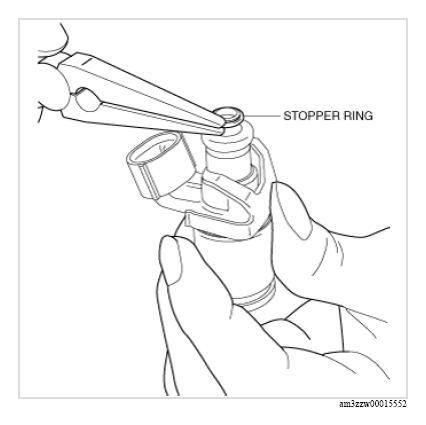

  1. Remove the stopper ring as shown in the figure.
G13149401Courtesy of MAZDA MOTORS CORP.
