2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
PID/DATA Monitor Inspection (HO2S)
- Connect the M-MDS to the DLC-2.
- Start the engine and warm it up completely.
- Access the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST
.)
- VSS (Vehicle speed)
- RPM (Engine speed)
- O2S12 (HO2S output voltage)
- Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3, 000 RPM or more.

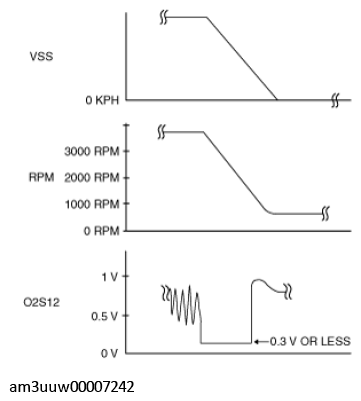

- Verify that the HO2S output voltage (PID: O2S12) changes as shown in the figure during deceleration. (outputs 0.6 V or more once or more, then 0.3 V or less.)
- If not as verified, replace the HO2S. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
