2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
Resistance Inspection: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the ECT sensor No. 1. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)

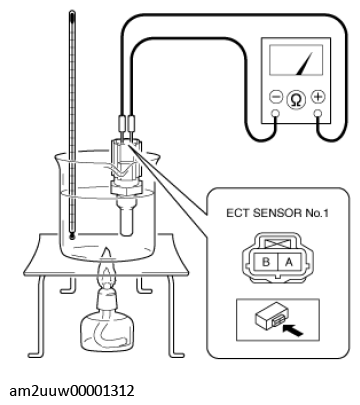

- Place the ECT sensor No. 1 in water with a thermometer, and heat the water gradually.
- Measure the resistance between ECT sensor No. 1 terminals A and B.
- If not as specified, replace the ECT sensor No. 1. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
