2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
Except Engine Compartment (Without Coolant Control Valve)

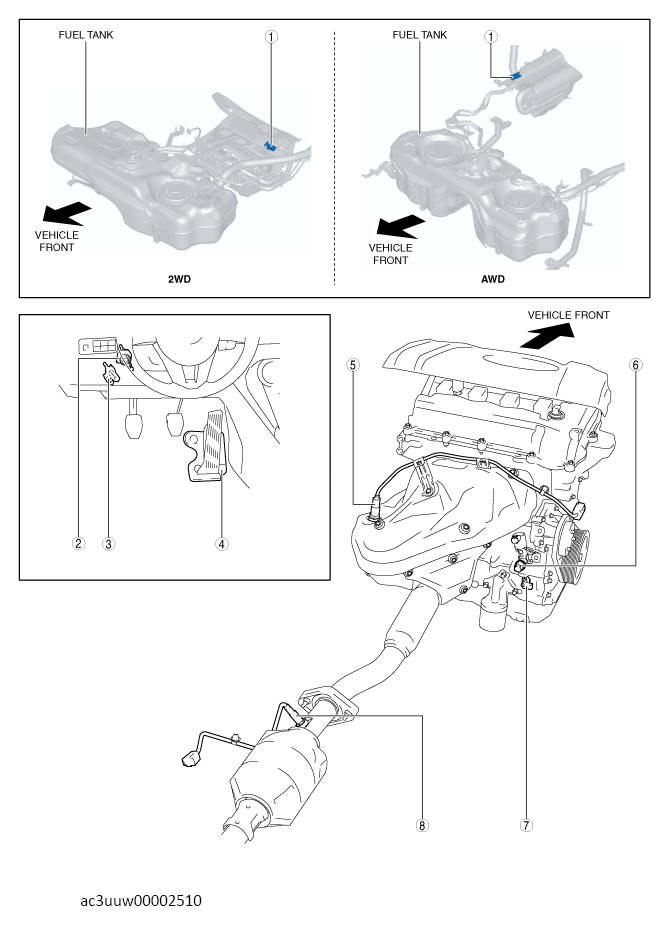

COMPONENT DESCRIPTION
| 1 | Fuel tank pressure sensor (U.S.A. and CANADA) (See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .) (See FUEL TANK PRESSURE SENSOR INSPECTION .) |
| 2 | Clutch stroke sensor (MTX) (lf equipped) (See CLUTCH STROKE SENSOR INSPECTION .) |
| 3 | CPP switch (MIX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION .) |
| 4 | APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .) |
| 5 | A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION .) |
| 6 | Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION .) |
| 7 | CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .) |
| 8 | HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION .) |
