Generator Installation Note

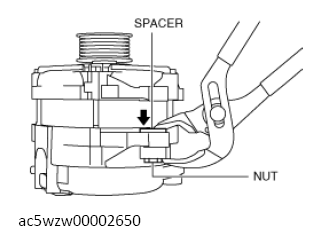

- To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

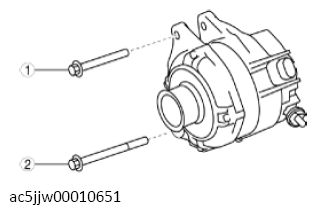

- Insert the generator lower bolt into the generator.
- Align the bolt installation holes on the engine and generator sides and temporarily tighten the generator upper bolt and generator lower bolt.
- Tighten the bolts in the order shown in the figure.
Tightening torque
38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
