2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE

Brush Disassembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

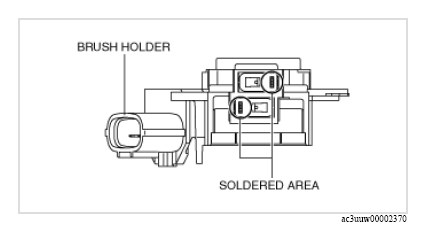

G13149635Courtesy of MAZDA MOTORS CORP.
  1. Melt the solder and remove the brush from the brush holder.
