2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE

Battery Removal/Installation: Notes

Remove in the order indicated in the table.
Install in the reverse order of removal.

Step 1

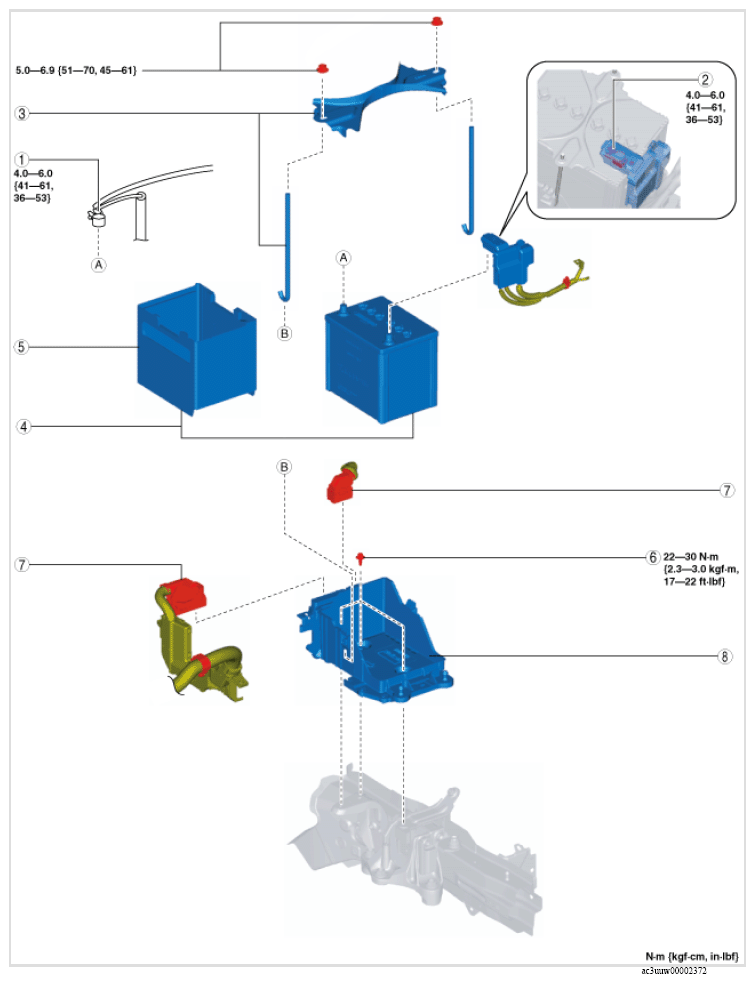

Fig 1: Battery Components With Torque Specification (Step 1)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Negative battery cable (See NEGATIVE BATTERY CABLE DISCONNECTION CONNECTION .) (See Negative Battery Cable Connection Note .)
2	Positive battery cable
3	Battery clamp
4	Battery, battery box
5	Battery box (See Battery Box Installation Note .)
6	Battery tray bolt
7	PCM connector (See Battery Tray and PCM Component Removal Note .) (See Battery Tray and PCM Component Installation Note .)
8	Battery tray and PCM component (See Battery Tray and PCM Component Removal Note .) (See Battery Tray and PCM Component Installation Note .)

Step 2

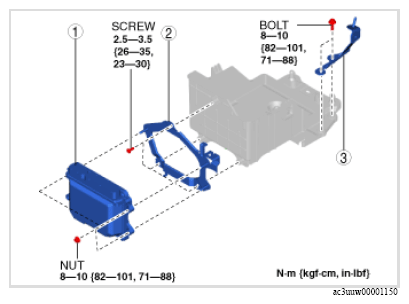

Fig 2: Battery Components With Torque Specification (Step 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	PCM (See PCM REMOVAL/INSTALLATION .)
2	Bracket A (See Bracket A Installation Note .)
3	Bracket B
