2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE

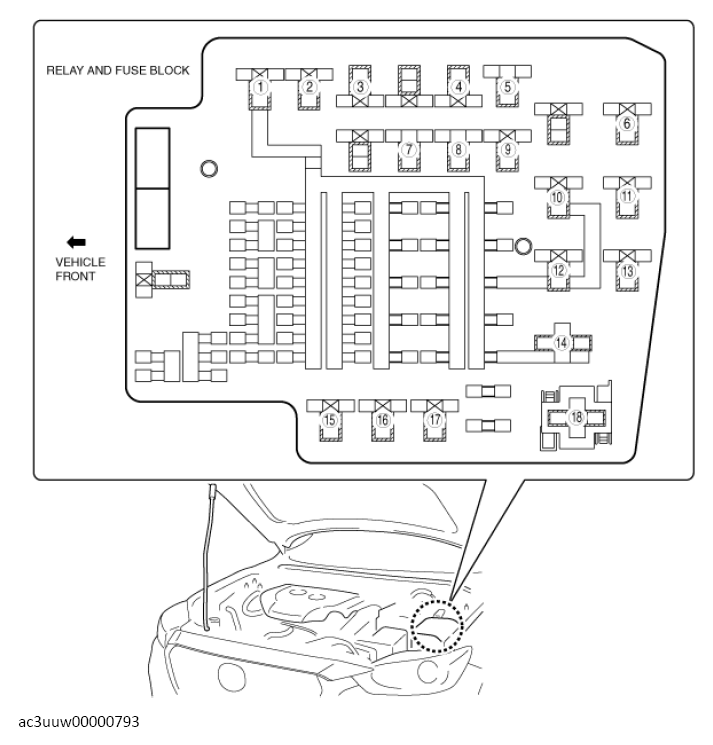

Relay Location
RELAY AND FUSE BLOCK RELAY IDENTIFICATION
| Relay Number | RELAY DESCRIPTION |
|---|---|
| 1 | IG1 Relay |
| 2 | A/C Relay |
| 3 | Front Fog Light Relay |
| 4 | Theft Deterrent Relay |
| 5 | Brake Light Relay |
| 6 | Horn Relay |
| 7 | Wiper Int Relay |
| 8 | Wiper Hi Relay |
| 9 | Steering Warmer Relay |
| 10 | Starter Relay |
| 11 | Electric Variable Valve Timing Relay |
| 12 | ACC Relay |
| 13 | Rear Window Defogger Relay |
| 14 | Blower Relay |
| 15 | Fuel Pump Relay |
| 16 | Fuel Injector Relay (Without Coolant Control Valve) Sub Relay (With Coolant Control Valve) |
| 17 | Main Relay |
| 18 | Cooling Fan Relay |
