2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE

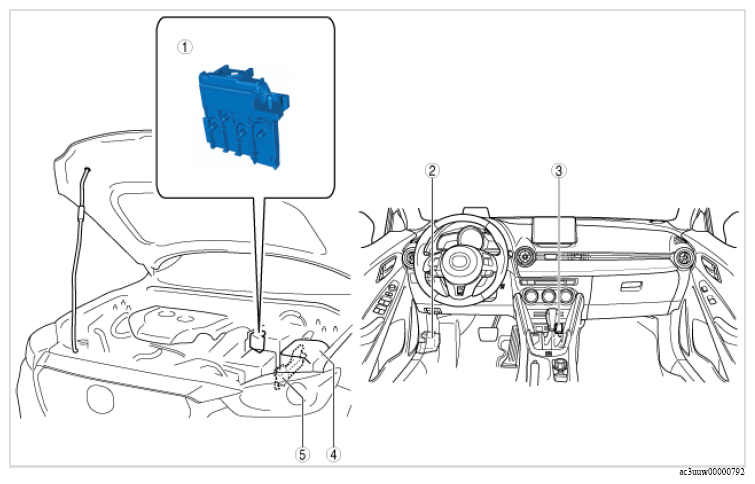

Power System Location Index
COMPONENT DESCRIPTION
| 1 | Main fuse (See MAIN FUSE REMOVAL/INSTALLATION .) |
| 2 | Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION .) |
| 3 | Accessory socket (See ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See ACCESSORY SOCKET INSPECTION .) |
| 4 | Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 5 | Front wiring harness protector (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION .) |
