2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
Main Fuse Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

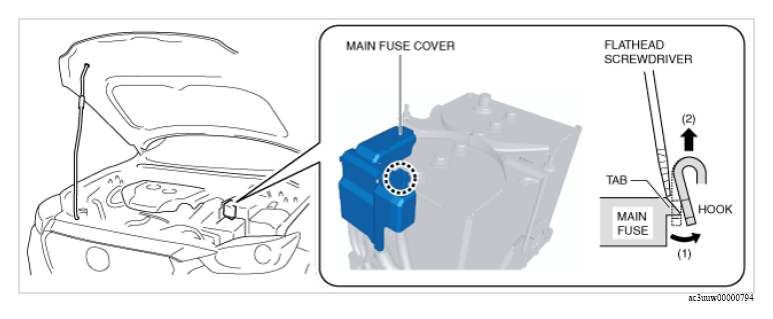

- While pressing the main fuse cover hook in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver, lift up the main fuse cover in the direction of the arrow (2) to detach the main fuse cover hook from the main fuse tab.

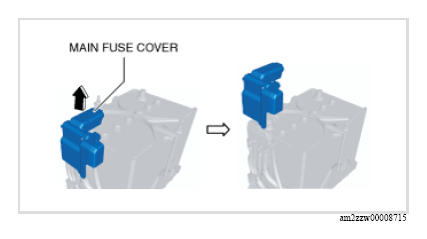

- Remove the main fuse cover.

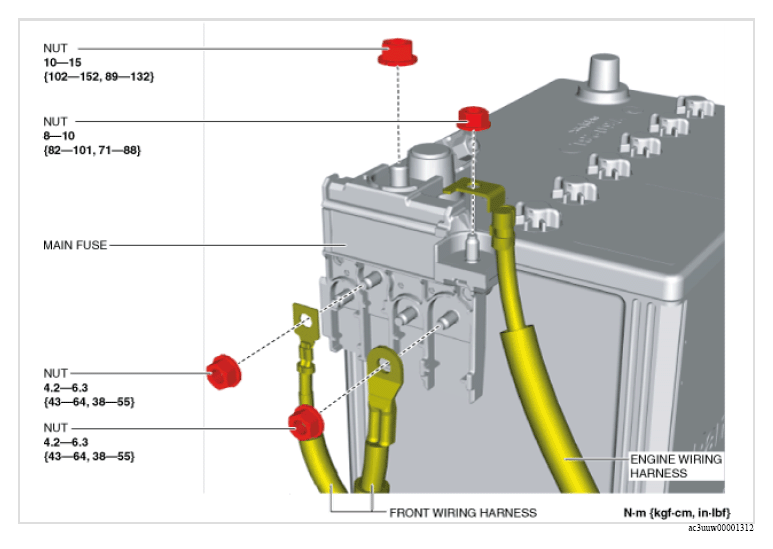

- Remove the nuts.
- Remove the main fuse.
- Install in the reverse order of removal.
