2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
TCS Off Switch Inspection
- Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION .)

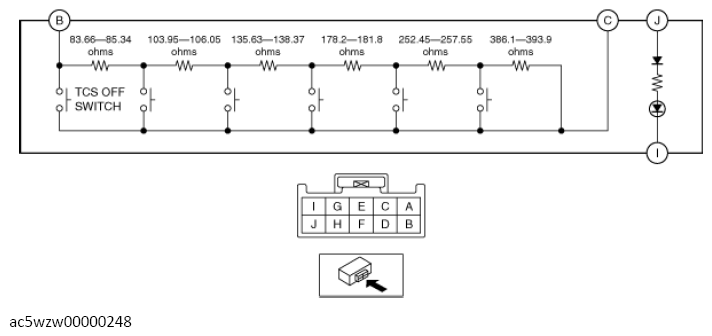

- Verify that the resistance between the TCS OFF switch terminals B and C is as indicated in the table.
- If not as indicated in the table, replace the TCS OFF switch.
RESISTANCE SPECIFICATIONTerminal Test condition Resistance (ohms) B-C Switch pressed 0 Switch released 1139.99-1163.01 - Apply battery voltage to TCS OFF switch terminal J, and connect terminal I to ground.
- Verify that the LED illuminates.
- If there is any malfunction, replace the TCS OFF switch.
