2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE
Sensor Cover Removal/Installation

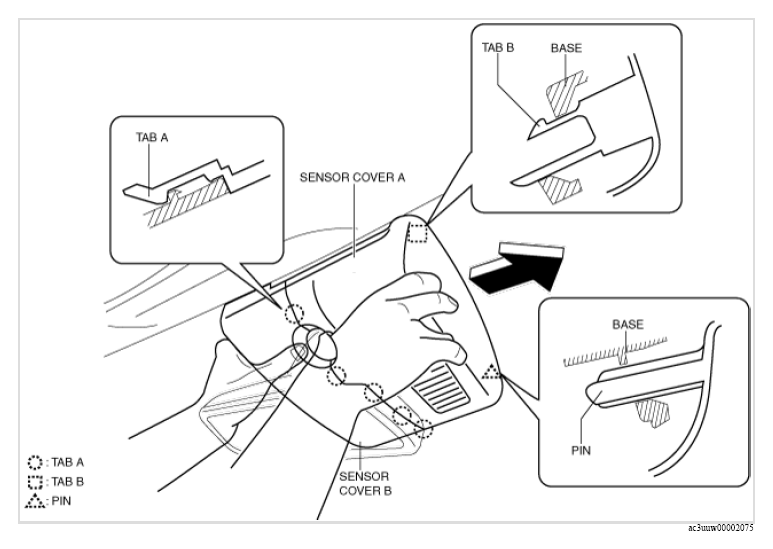

- Pull the sensor cover A in the direction of the arrow shown in the figure and detach tabs A of sensor cover A and sensor cover B.
- Pull the sensor cover A in the direction of the arrow shown in the figure, detach the tab B and pin for sensor cover A and the base, and remove sensor cover A from the base.

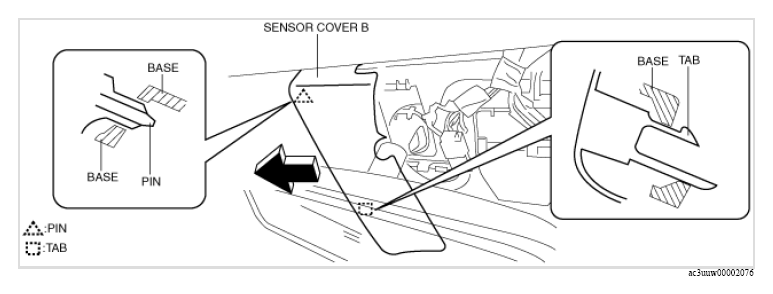

- Pull the sensor cover B in the direction of the arrow shown in the figure, detach the tab and pin for sensor cover B and the base, and remove sensor cover B from the base.
- Install in the reverse order of removal.
