2021 Mazda CX-3 AWDFACTORY OEM SERVICE PROCEDURE

Clip Replacement Note

  • If the clip has been damaged, perform the following procedure.

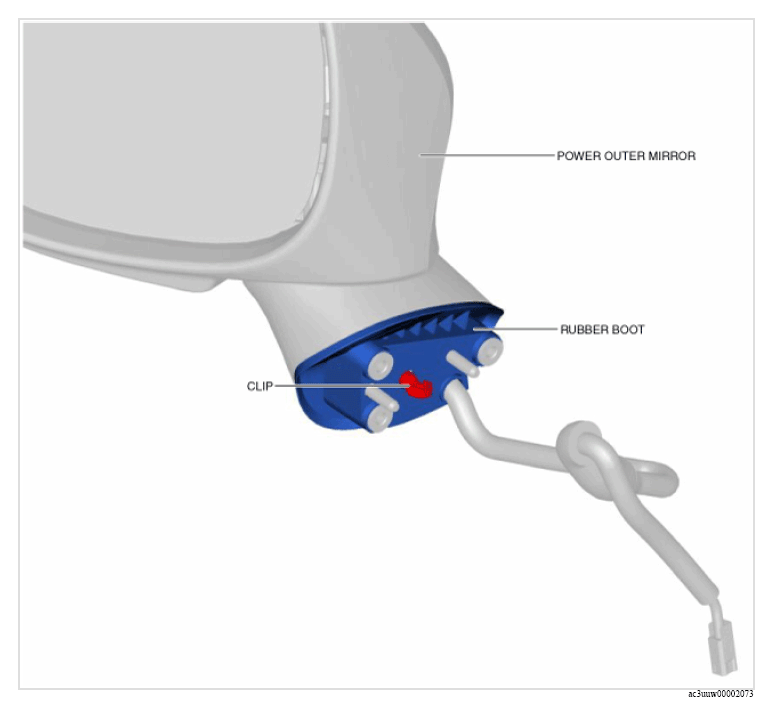

  1. Remove the rubber boot.
    G13152108Courtesy of MAZDA MOTORS CORP.

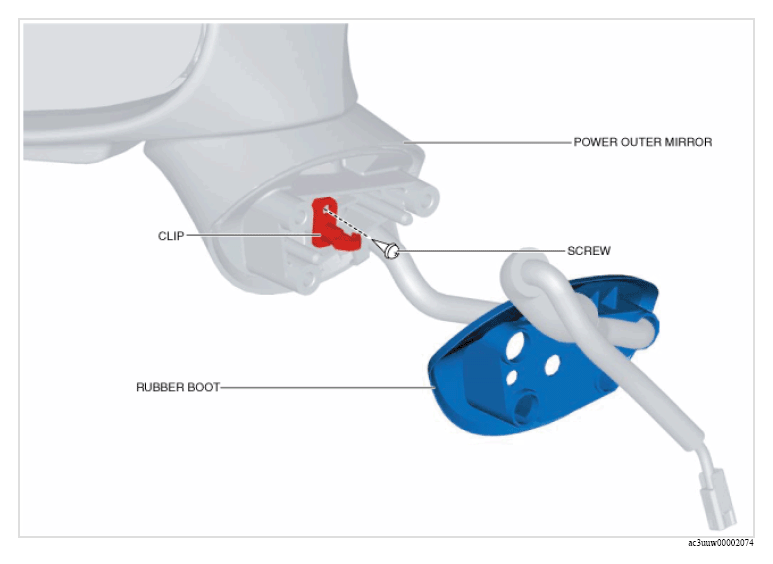

  2. Remove the screw.
    G13152109Courtesy of MAZDA MOTORS CORP.
  3. Remove the clip.
  4. Install in the reverse order of removal.
