2021 Mazda 6 Carbon EditionFACTORY OEM SERVICE PROCEDURE
PCM Connector Connection Note
CAUTION:
- Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.

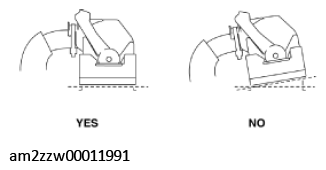

- If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

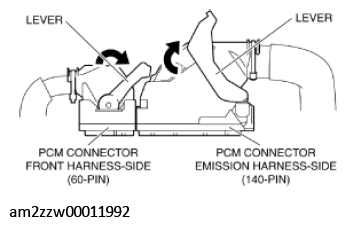

- Set the PCM connector lever to the position shown in the figure.

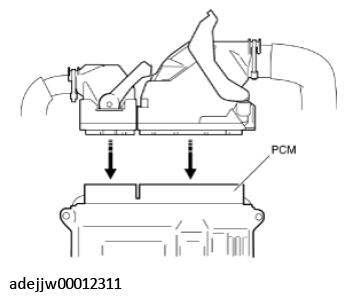

- Align the PCM connector straight against the connection surface.
- Insert the PCM connector straight and press it in until the lever moves up naturally. (Front harness-side connector)

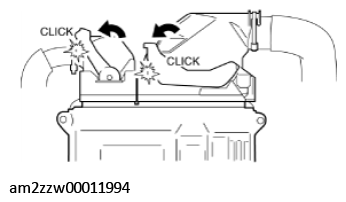

- Press the PCM connector lever until a click sound is heard.
