2021 Mazda 6 Carbon EditionFACTORY OEM SERVICE PROCEDURE

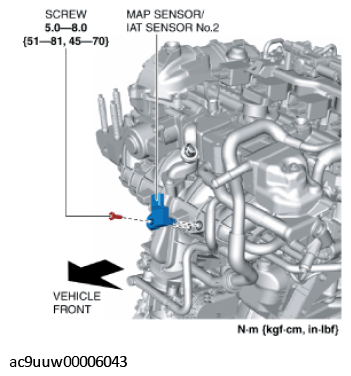

Manifold Absolute Pressure (Map) Sensor/Intake Air Temperature (IAT) Sensor No. 2 Removal/Installation
NOTE:
- The MAP sensor and IAT sensor No. 2 cannot be removed as a single unit. When replacing the MAP sensor or IAT sensor No. 2, replace the MAP sensor/IAT sensor No. 2.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Disconnect the MAP sensor/IAT sensor No. 2 connector.
- Remove the screw.
- Remove the MAP sensor/IAT sensor No. 2.
- Install in the reverse order of removal.
