2021 Mazda 6 Carbon EditionFACTORY OEM SERVICE PROCEDURE
Front Abs Wheel-Speed Sensor Removal/Installation: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

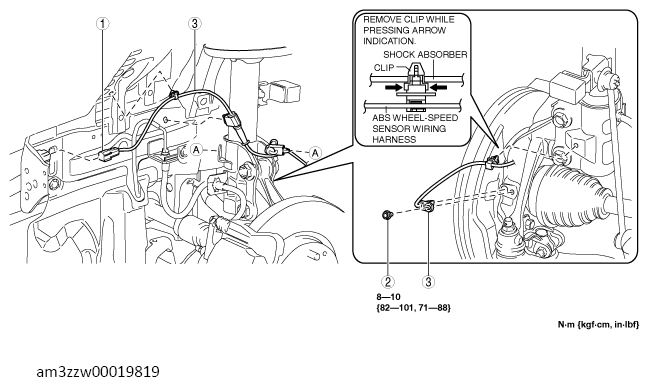

Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION1 Connector
(See CONNECTOR DISCONNECTION NOTE .)2 Bolt 3 Front ABS wheel-speed sensor
(See CONNECTOR DISCONNECTION NOTE .)
