2021 Mazda 6 Carbon EditionFACTORY OEM SERVICE PROCEDURE
Power Window Main Switch Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

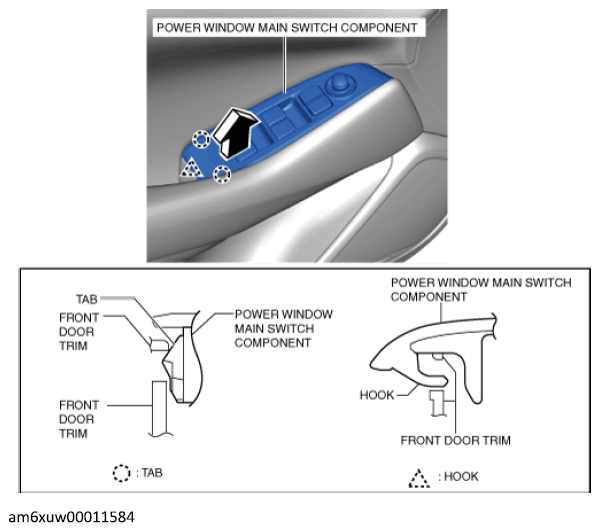

- Move the power window main switch component in the direction of the arrow and detach the tabs and hook.

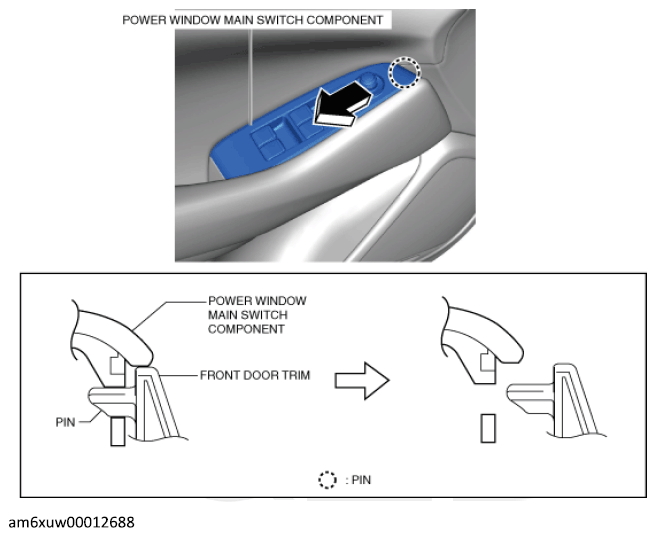

- Move the power window main switch component in the direction of the arrow and detach the pin.

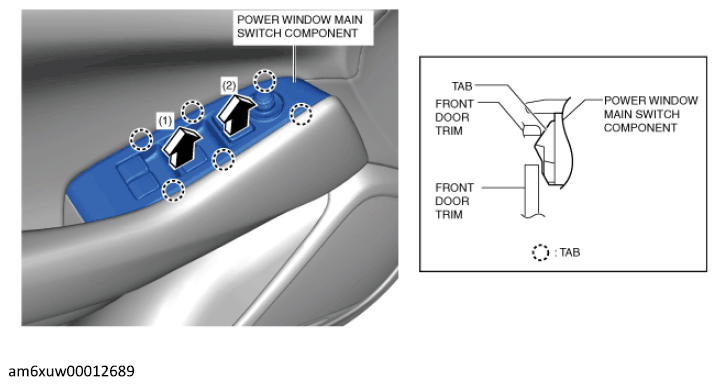

- Move the power window main switch component in the direction of arrows (1), (2) and detach the tabs.

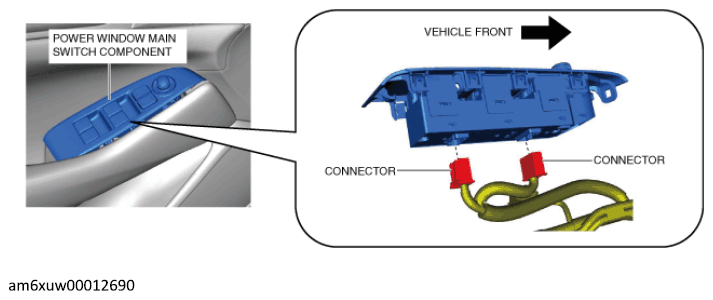

- Disconnect the connectors.
- Remove the power window main switch component from the front door trim.

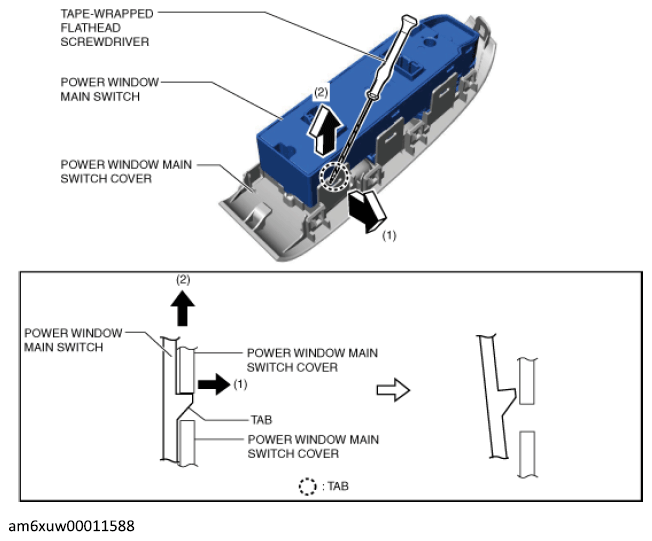

- Using a tape-wrapped flathead screwdriver, move the power window main switch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window main switch in the direction of arrow (2).

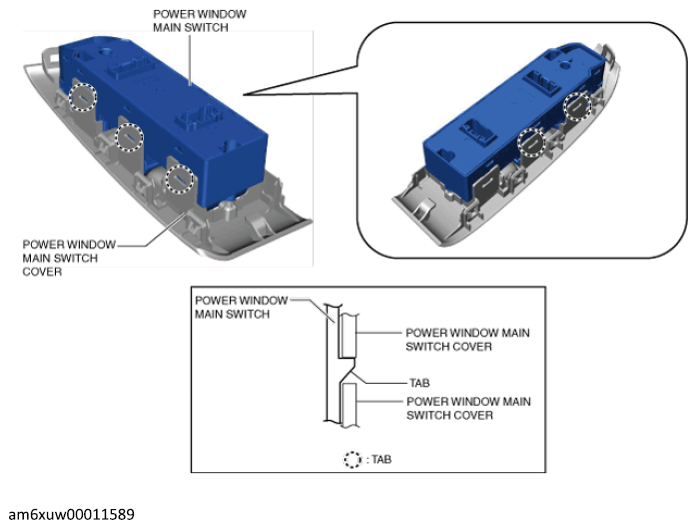

- Detach the tabs in the same manner as Step 7.
- Remove the power window main switch from the power window main switch cover.
- Install in the reverse order of removal.
