2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

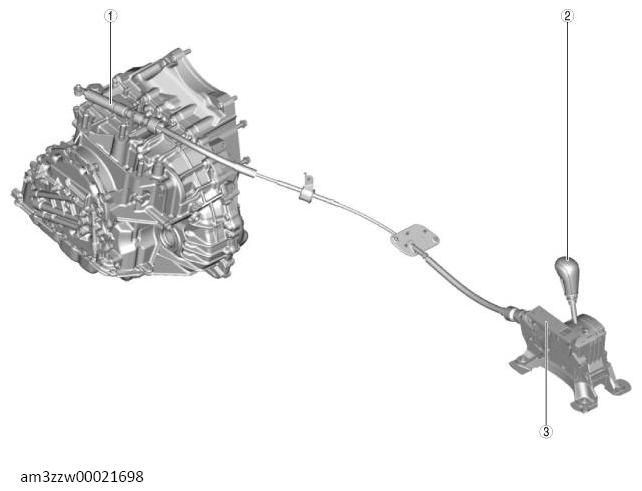

Automatic Transaxle Shift Mechanism Location Index
PART DESCRIPTION
| 1 | Selector cable (See SELECTOR CABLE REMOVAL/INSTALLATION (US) .) (See SELECTOR CABLE ADJUSTMENT .) |
| 2 | Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .) (See SELECTOR LEVER INSPECTION .) (See SHIFT-LOCK SYSTEM INSPECTION .) (See SHIFT-LOCK SOLENOID INSPECTION .) (See SHIFT-LOCK OVERRIDE BUTTON INSPECTION (US) .) (See NOT P POSITION SWITCH INSPECTION .) |
| 3 | Indicator (See INDICATOR REMOVAL/INSTALLATION .) (See INDICATOR INSPECTION .) |
