2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Engine Oil Temperature Sensor/Engine Oil Pressure Sensor Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Replacement Part

O-ring
Quantity: 1
Location of use: Engine oil temperature sensor/engine oil pressure sensor
NOTE:
  • The engine oil pressure sensor and engine oil temperature sensor cannot be removed as a single unit. When replacing the engine oil temperature sensor or engine oil pressure sensor, replace the engine oil pressure sensor/engine oil temperature sensor.
  1. Turn the steering wheel to full right lock.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Lift up the vehicle.
  4. Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  5. Disconnect the connector for the engine oil temperature sensor/engine oil pressure sensor using the following procedure:

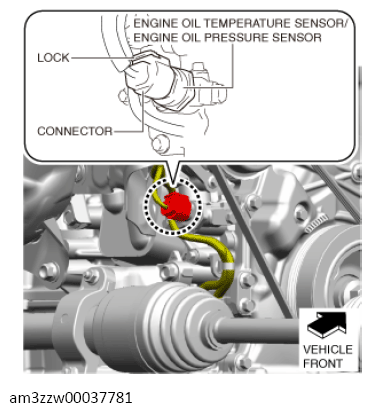

    G13714473Courtesy of MAZDA MOTORS CORP.
    1. Pull out the connector lock in the direction of the arrow.

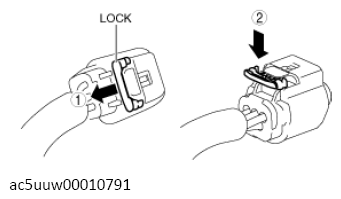

      G13119048Courtesy of MAZDA MOTORS CORP.
    2. Press the lock down in the direction of the arrow and disconnect the connector. (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR CONNECTOR CONNECTION NOTE .)
  6. Remove the engine oil temperature sensor/engine oil pressure sensor.

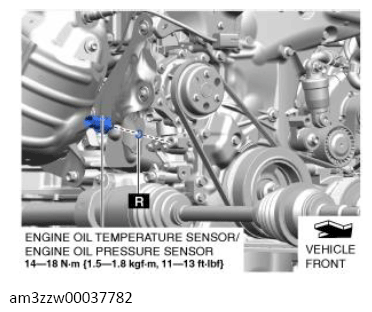

    Fig 1: Engine Oil Pressure And Temperature Sensor With Torque Specification
    G13714475Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
