2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Current Sensor Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Connect the negative battery cable before connecting the current sensor connector. If the current sensor connector is connected first, the PCM may mistakenly recognize a signal from the current sensor and learn the battery condition incorrectly.

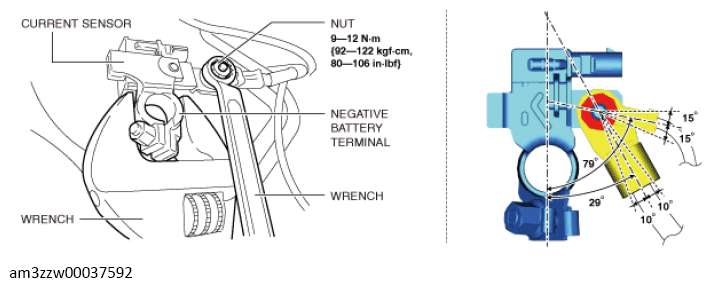

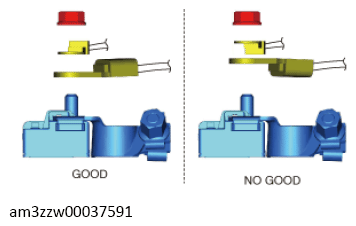

- Verifying the tightness while holding the current sensor may apply excessive force to the terminal and the terminal could loosen, causing poor engine starting. When verifying the tightness of the negative battery cable, only hold the terminal area, not the current sensor.
