2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Control System Location Index

WARNING: This page is about a different variant/trim than selected.

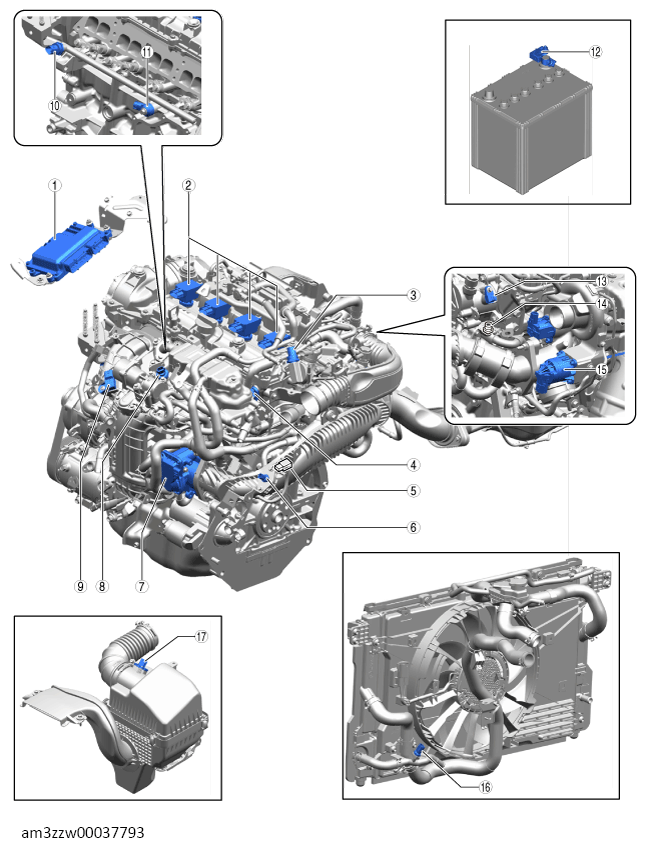

G13714449Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 PCM (BARO sensor, PCM temperature sensor)
(See PCM REMOVAL/INSTALLATION .)
(See PCM INSPECTION .)
(See CONFIGURATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .)
2 Ion sensor
(See ION SENSOR REMOVAL/INSTALLATION .)
(See ION SENSOR INSPECTION .)
3 Low fuel pressure sensor/Fuel temperature sensor
(See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
(See LOW FUEL PRESSURE SENSOR INSPECTION .)
(See FUEL TEMPERATURE SENSOR INSPECTION .)
4 Intake CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
5 Boost pressure sensor
(See BOOST PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See BOOST PRESSURE SENSOR INSPECTION .)
6 Boost air temperature sensor
(See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
(See BOOST AIR TEMPERATURE SENSOR INSPECTION .)
7 TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION .)
(See THROTTLE POSITION (TP) SENSOR INSPECTION .)
8 Exhaust gas pressure sensor
(See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See EXHAUST GAS PRESSURE SENSOR INSPECTION .)
9 MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
10 High fuel pressure sensor
(See HIGH FUEL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See HIGH FUEL PRESSURE SENSOR INSPECTION .)
11 KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See KNOCK SENSOR (KS) INSPECTION .)
12 Current sensor
(See CURRENT SENSOR REMOVAL/INSTALLATION .)
(See CURRENT SENSOR INSPECTION .)
13 Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
14 ECT sensor No. 1
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
15 Wastegate valve position sensor
(See WASTEGATE VALVE POSITION SENSOR REMOVAL/INSTALLATION .)
(See WASTEGATE VALVE POSITION SENSOR INSPECTION .)
16 ECT sensor No. 2
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
17 MAF sensor/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)

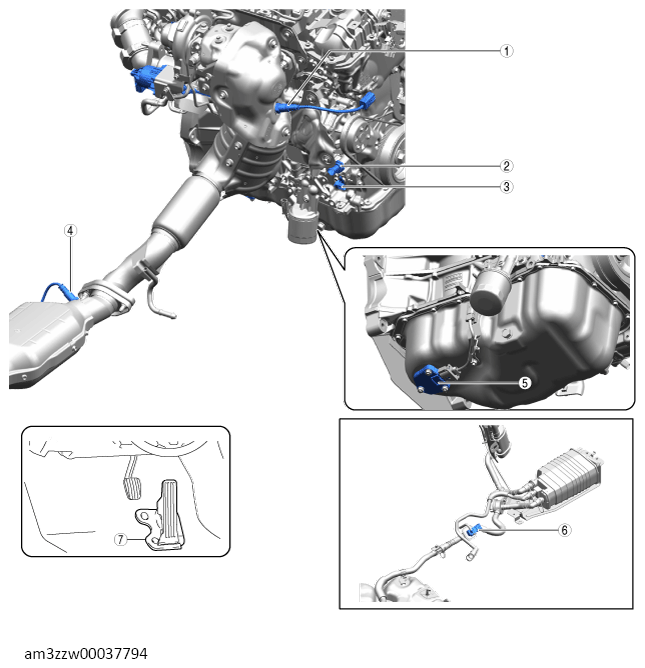

G13714450Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
2 Engine oil temperature sensor/Engine oil pressure sensor
(See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See ENGINE OIL PRESSURE SENSOR INSPECTION .)
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION .)
3 CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
4 HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
5 Engine oil level sensor
(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .)
(See ENGINE OIL LEVEL SENSOR INSPECTION .)
6 Fuel tank pressure sensor (U.S.A. and CANADA)
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See FUEL TANK PRESSURE SENSOR INSPECTION .)
7 APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
