2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

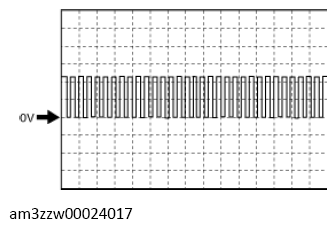

Wave pattern (reference)

Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)

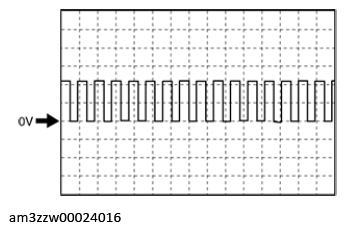

Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Racing (Engine speed: 2, 000 rpm)
