2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Generator Disassembly/Assembly (VIN M)

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

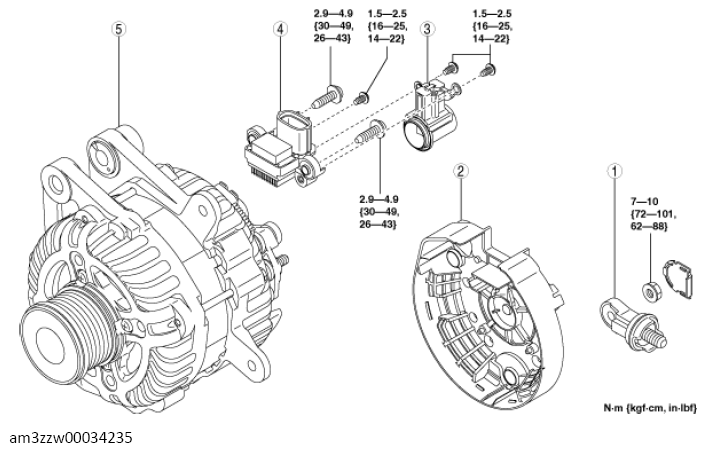

Fig 1: Generator Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Terminal B component
2	Rear cover
3	Brush holder
4	Regulator assy
5	Generator
