2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Battery Removal/Installation (VIN Y): Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

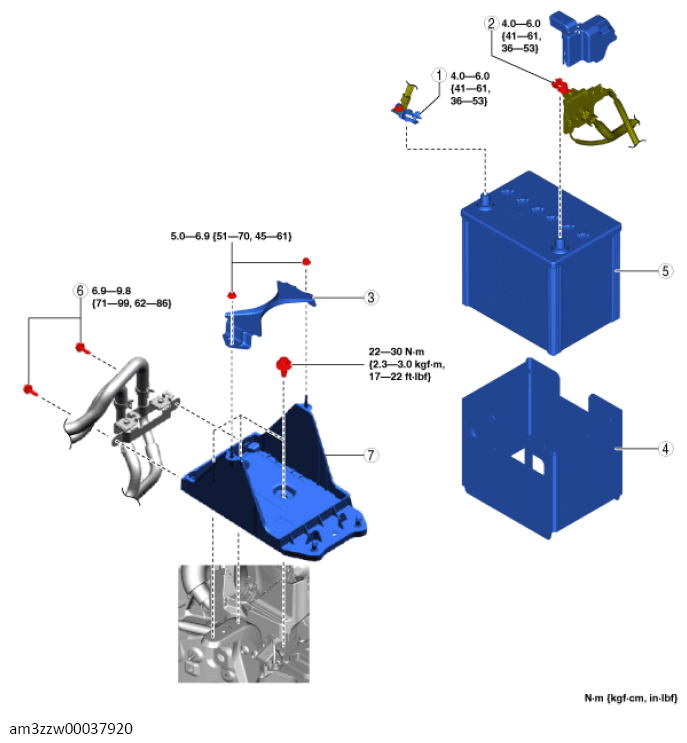

PART DESCRIPTION
| 1 | Negative battery terminal (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .) (See NEGATIVE BATTERY TERMINAL CONNECTION NOTE .) |
| 2 | Positive battery cable |
| 3 | Battery clamp |
| 4 | Battery box (See BATTERY BOX INSTALLATION NOTE .) |
| 5 | Battery |
| 6 | Heater hose bracket bolt |
| 7 | Battery tray (See BATTERY TRAY REMOVAL NOTE .) (See BATTERY TRAY INSTALLATION NOTE .) |
