2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

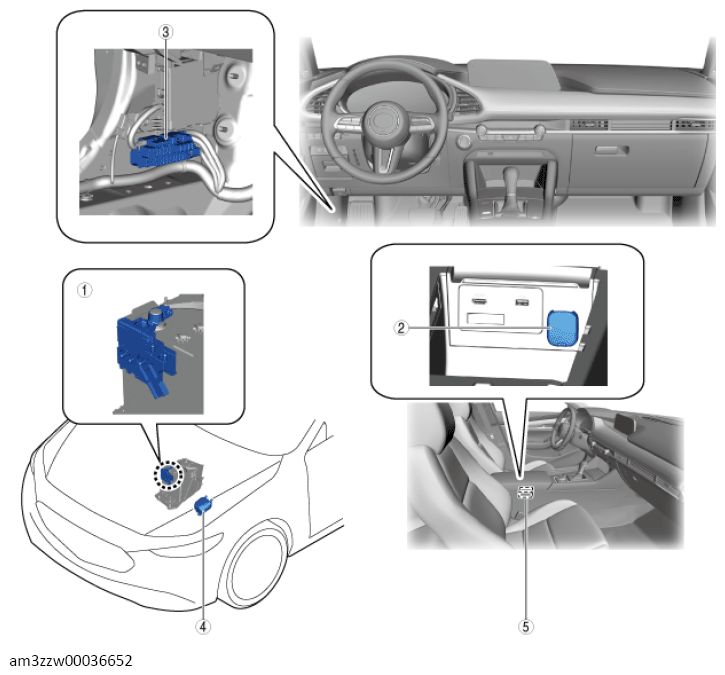

Power System Location Index (Us)
PARTS DESCRIPTION
| 1 | Main fuse (See MAIN FUSE REMOVAL/INSTALLATION (US) .) |
| 2 | Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See CENTER ACCESSORY SOCKET INSPECTION .) |
| 3 | Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) |
| 4 | Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION (US) .) (See RELAY INSPECTION .) |
| 5 | Backup power supply (See BACKUP POWER SUPPLY INSPECTION .) |
