2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Bluetooth® pairing

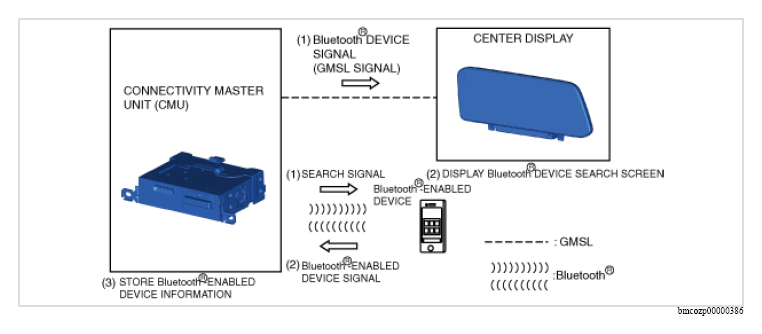

  1. When the CMU receives the operation signal/detects the switch operation, it transmits a search signal to a Bluetooth® enabled device near the CMU and sends (1) the Bluetooth®-device search screen signal to the center display.
  2. The Bluetooth®-enabled device near the CMU sends (2) a Bluetooth® device signal to the CMU. In addition, the center display displays (2) the Bluetooth® device search screen.
  3. The CMU programs (3) the Bluetooth®-enabled device information based on the Bluetooth® device signal.
    NOTE:
    • In the following cases, Bluetooth® pairing is canceled.
      • Eight (maximum of 7) Bluetooth® devices have been programmed
      • Bluetooth® device signal is not received during period of 180 s
      • Cancel is selected during Bluetooth® device search screen display
    G13180388Courtesy of MAZDA MOTORS CORP.
