2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

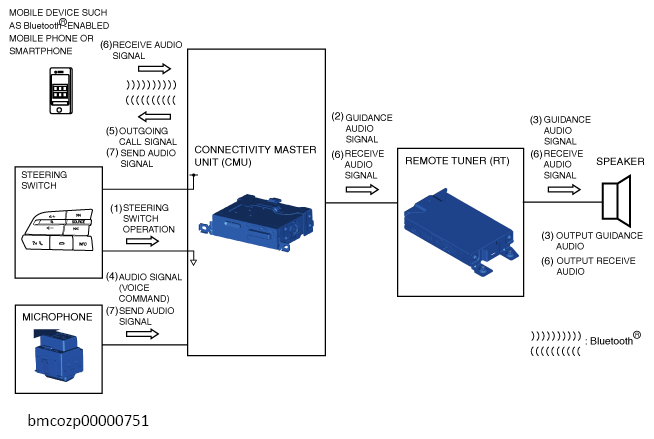

Bluetooth®(Hands-Free) function (outgoing calls)
- When the talk button on the steering switch is pressed, the CMU detects (1) the steering switch operation.
- When the CMU detects the steering switch operation, it sends (2) a guidance audio signal to the remote tuner (RT).
- The remote tuner (RT) sends (3) the guidance audio signal to the speakers and the speakers output (3) the guidance audio.
- The voice recognition-use microphone converts the words (voice commands) produced by the user after the guidance audio output to an audio signal and sends it to the CMU.
- When the CMU receives the audio signal from the voice recognition-use microphone, it sends (5) an outgoing call signal to a mobile device such as a Bluetooth®-enabled mobile phone or a Smartphone, and the call is initiated.
- The mobile device, such as a Bluetooth®-enabled mobile phone or a Smartphone, sends (6) the received audio signal to the CMU, and the signal is output (6) from the speakers via the remote tuner (RT).
- The voice recognition-use microphone sends the send audio signal of the user to the CMU, and the CMU sends (7) the received send audio signal to a mobile device such as a Bluetooth®-enabled mobile phone or a Smartphone.
