Fuel efficiency monitor verification procedure

Select the "Information" button on the Home screen.
Select [Fuel Efficiency Monitor] on the information screen to display the guidance.

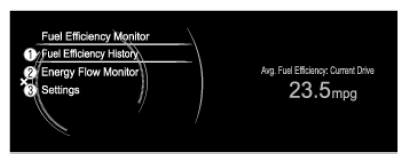

- The buttons on the menu screen operate as follows:

Display	Content
Courtesy of MAZDA MOTORS CORP.	1	Displays the information regarding the fuel efficiency.
	2	Displays the system operation status.
	3	Displays the settings for the fuel efficiency monitor.

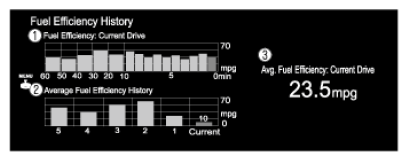

Fuel Consumption

Display	Content
Courtesy of MAZDA MOTORS CORP.	1	Displays the fuel economy for the past 60 minutes. Displays the fuel economy every minute for the past 1 to 10 minutes. Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
	2	Displays the average fuel economy over the past 5 resets and after the current reset.
	3	Displays the average fuel economy from when the ignition is switched ON (engine on) to the current time. The average fuel economy is updated every 60 s. If there is no average fuel economy data, displays "- -".

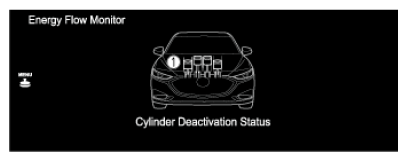

Energy Flow Monitor

Display	Content
Courtesy of MAZDA MOTORS CORP.	1	The condition of each cylinder is displayed by colors. The operating cylinders are displayed in red.
