2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Reusing Windshield
- Remove the sealant along the perimeter of the glass using a utility knife.
- Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the windshield.
- Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

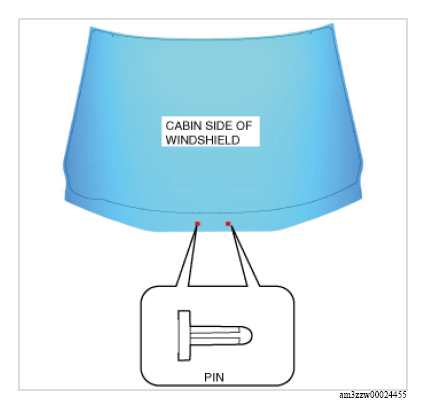

- Align the alignment marks made before removal and install the pins to the windshield referring to the figure.
- Install the windshield molding.
- Apply primer to the area of the glass shown in the figure.
- Follow the primer product instructions for the drying time.
CAUTION:- To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
